John Deere 9520

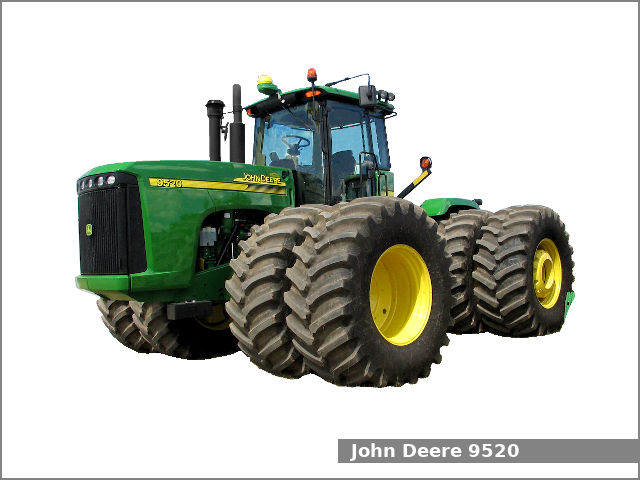

John Deere 9520The John Deere 9520 is a 4WD four-wheel drive from the 9020 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2002 to 2007. The JD 9520 is equipped with a 12.5 L (765.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9520 four-wheel drive used the John Deere engine. It is a 12.5 L, 12,536 cm2, (765.0 cu·in) six-cylinder turbocharged diesel engine with 127.0 mm (5 in) of the cylinder bore and 156.0 mm (6.14 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 456.4 PS (335.6 kW; 450.0 HP) at 2,100 rpm of output power.

The John Deere 9520 is equipped with hydrostatic articulated steering, hydraulic wet disc brakes, CommandView cab and 1022.0 liters (270 US gal.; 224.8 Imp. gal) fuel tank.

John Deere 9520 Specifications

General Specifications
Model John Deere 9520
Length 6,950 mm (273.6 in)
Width 2,930 mm (115.4 in)
Height (cab) 3,490 mm (137.4 in)
Wheel base 3,500 mm (137.8 in)
Ground clearance (front axle) 730 mm (28.7 in)
Weight (operating) 17,380 kg (38,316 lbs)
Fuel tank capacity 1022.0 liters (270 US gal.; 224.8 Imp. gal)
Battery Three 12V, CCA 925A
Cabin type CommandView cab standard with air-conditioning
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 12.5 L, 12,536 cm2, (765.0 cu·in)
Bore and stroke 127.0 mm X 156.0 mm (5 in X 6.14 in)
Compression ratio 17.0:1
Horsepower 456.4 PS (335.6 kW; 450.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Coolant capacity: 60.6 L (64 US. qt, 53.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic articulated
Brakes Hydraulic wet disc
Transmission model John Deere Powershift
Transmission type Full power shift
Gears 18 forward and 6 reverse
Speed Forward: 40.1 kmh (24.9 mph) Reverse: 12.7 kmh (7.9 mph)
Transmission oil capacity 134.0 L (35.4 US. gal, 29.5 Imp. gal.)
With PTO: 137.8 L (36.4 US. gal, 30.3 Imp. gal.)
Tires
Front tires Ag: 800/70R38
Rear tires Ag: 800/70R38
Three-Point Hitch
Category III or IV/IVN
Control type
Lift capacity (at ends) 6,290 kg (13,870 lbs)
Optional: 6,550 kg (14,445 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed center pressure/flow compensated
Hydraulic capacity 102.2 L (27.0 US. gal, 22.5 Imp. gal.)
With 3pt: 106.0 L (28.0 US. gal, 23.3 Imp. gal.)
Hi-flow: 113.6 L (30.0 US. gal, 25.0 Imp. gal.)
Hi-flow/3pt: 117.3 L (31.0 US. gal, 25.8 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 4 or 5
Pump flow 30.0 gpm (113.6 lpm)
Total flow 48.0 gpm (181.7 lpm)
Hi-flow: 78.0 gpm (295.2 lpm)
