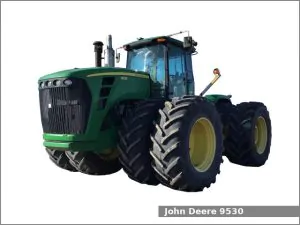

John Deere 9530

John Deere 9530The John Deere 9530 is a four-wheel drive tractor from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9530 is equipped with a 13.5 L (826.7 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears and electronic wet disc clutch.

The JD 9530 four-wheel drive used the John Deere engine. It is a 13.5 L, 13,547 cm2, (826.7 cu·in) six-cylinder turbocharged aftercooled diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 481.7 PS (354.2 kW; 475.0 HP) at 2,100 rpm of output power.

The John Deere 9530 is equipped with hydrostatic power steering, hydraulic wet discs brakes, CommandView Cab (standard) and 1324.8 liters (350.0 US gal.; 291.4 Imp. gal) fuel tank.

John Deere 9530 Specifications

General Specifications
Model John Deere 9530
Length 6,850 mm (269.7 in)
Width 3,010 mm (118.5 in)
Height (cab) 3,600 mm (141.7 in)
Wheel base
Ground clearance (rear axle) 780 mm (30.7 in)
Weight (shipping) 17,120 kg (37,743 lbs)
Fuel tank capacity 1324.8 liters (350 US gal.; 291.4 Imp. gal)
Battery Two 12V, CCA 950A
Cabin type CommandView Cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 13.5 L, 13,547 cm2, (826.7 cu·in)
Bore and stroke 132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio 16.0:1
Horsepower 481.7 PS (354.2 kW; 475.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 60.0 L (63.4 US. qt, 52.8 Imp. qt.)
Coolant capacity: 66.2 L (70 US. qt, 58.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet discs
Differential lock Hydraulic differential lock (standard)
Transmission model John Deere PowerShift
Transmission type Full power shift with electronic wet disc clutch
Gears 18 forward and 6 reverse
Speed Forward: 40.5 kmh (25.2 mph) Reverse: 12.9 kmh (8.0 mph)
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category IIIN/IV or IVN/IV
Control type
Lift capacity (at 610 mm/24 in) 6,940 kg (15,300 lbs)
Hydraulic system
Hydraulic type Closed-center pressure and flow compensating
Hydraulic capacity 102.2 L (27.0 US gal, 22.5 Imp. gal.)
3-point: 106.0 L (28.0 US gal, 23.3 Imp. gal.)
High-Flow: 75.7 L (20.0 US gal, 16.7 Imp. gal.)
High-Flow and 3-point: 117.3 L (31 US gal, 25.8 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 4 to 6
SCV flow 30.0 gpm (113.6 lpm)
Total flow 48.0 gpm (181.7 lpm)
High-Flow: 78.0 gpm (295.3 lpm)
