John Deere D105

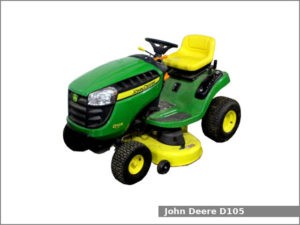

John Deere D105The John Deere D105 is a 2WD lawn tractor from the D100 series. This tractor has been manufactured by John Deere in Greenville, Tennessee, USA since 2013. The John Deere D105 is equipped with a 0.5 L single-cylinder gasoline engine and belt-driven mechanical CVT transmission with infinite forward and reverse gears.

The John Deere D105 lawn tractor used the Briggs & Stratton 31G777 engine. It is a 0.5 L, 500 cm2, (30.51 cu·in) single-cylinder natural aspirated gasoline engine with 90.7 mm (3.57 in) of the cylinder bore and 77.7 mm (3.06 in) of the piston stroke. The B&S 31G777 engine has an overhead valve (OHV) design, heavy-duty sleeve bearings, electronic ignition system, and an electric starter. This engine produced 17.7 PS (13.0 kW; 17.4 HP) of maximum output power.

The John Deere D105 is equipped with manual steering, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for John Deere D105 lawn tractor:

  • John Deere 42: mid-mount 42 in (1,070 mm) 2-blade mower deck
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 44 in (1,110 mm) front-mount snowblower

John Deere D105 Specifications

General Specifications
Model John Deere D105
Length 1,750 mm (68.9 in)
Width 1,080 mm (42.5 in)
Height 1,310 mm (51.6 in)
Wheel base 1,240 mm (48.8 in)
Weight 200 kg (440 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 31G777
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke 90.7 mm X 77.7 mm (3.57 in X 3.06 in)
Horsepower 17.7 PS (13.0 kW; 17.4 HP) at rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.4 L (1.48 US. qt, 1.23 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Maual
Brakes
Transmission model General Transmission RT400
Transmission type Belt-driven mechanical CVT
Gears Infinite forward and reverse
Speed Forward: 8.0 kmh (5 mph) Reverse: 3.7 (2.3 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO spped
