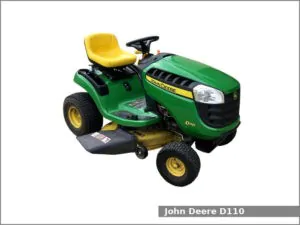

John Deere D110

John Deere D110The John Deere D110 is a 2WD lawn tractor from the D100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2011 to 2017.

The JD D110 is equipped with one of two engines: a 0.5 L single-cylinder Briggs & Stratton 31P677 gasoline engine or a 0.54 L single-cylinder Briggs & Stratton 33 gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The tractor could be equipped with the following engines:

  • Briggs & Stratton 31P677. It is a 0.5 L, 500 cm2, (30.5 cu·in) single-cylinder natural aspirated gasoline engine with 90.6 mm (3.57 in) of the cylinder bore and 77.8 mm (3.06 in) of the piston stroke. This engine produced 19.7 PS (14.5 kW; 19.5 HP) of maximum output power.
  • Briggs & Stratton 33. It is a 0.5 L, 540 cm2, (32.9 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 94.0 mm (3.7 in) and the piston stroke is 78.0 mm (3.07 in). This engine produced 19.3 PS (14.2 kW; 19.0 HP) at rpm of maximum output power.

The John Deere D110 is equipped with manual steering, mechanical shoe on transaxle brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for John Deere D110 lawn tractor:

  • John Deere 42: mid-mount 42 in (1,060 mm) 2-blades mower deck with manual spring assisted lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 43.25 in (1,090 mm) front-mount snowblower

John Deere D110 Specifications

General Specifications
Model John Deere D110
Length 1,750 mm (68.9 in)
Width 1,310 mm (51.6 in)
Height 1,080 mm (42.5 in)
Wheel base 1,240 mm (48.8 in)
Weight 205 kg (452 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 31P677
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke 90.6 mm X 77.8 mm (3.57 in X 3.06 in)
Horsepower 19.7 PS (14.5 kW; 19.4 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.4 L (1.48 US. qt, 1.23 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Intake valve clearance 0.076-0.127 mm (0.003-0.005 in)
Exhaust valve clearance 0.13-0.18 mm (0.005-0.007 in.)
Engine
Engine model Briggs & Stratton 33
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 540 cm2, (32.95 cu·in)
Bore and stroke 94.0 mm X 78.0 mm (3.7 in X 3.07 in)
Horsepower 19.3 PS (14.2 kW; 19.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.4 L (1.48 US. qt, 1.23 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical shoe on transaxle
Transmission model Kanzaki Tuff Torq T40
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Transmission model Tuff Torq TLT-200
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.0-8
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped
