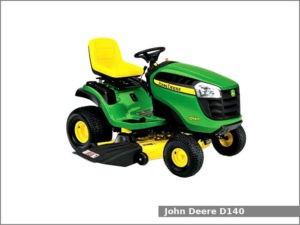

John Deere D140

John Deere D140The John Deere D140 is a 2WD lawn tractor from the D100 series. This lawn tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2011 to 2017.

The John Deere D140 lawn tractor is equipped with one of two 0.7 L engines: Briggs & Stratton 40 (2011-2012) or Briggs & Stratton 44 (2013-2017) gasoline engine and Tuff Torq (Kanzaki) T40 belt-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere D140 lawn tractor used following engines:

  • From 2011 to 2012: Briggs & Stratton 40. It is a 0.7 L, 656 cm2, (40 cu·in) V-Twin gasoline engine with 75.44 mm (2.97 in) of cylinder bore and 73.41 mm (2.89 in) of piston stroke. This engine produced 22.3 PS (16.4 kW; 22 HP) of maximum output power.
  • From 2013 to 2017: Briggs & Stratton 44. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-Twin gasoline engine with 79.0 mm (3.11 in) of cylinder bore and 73 mm (2.87 in) of piston stroke. This engine produced 22.3 PS (16.4 kW; 22 HP) of maximum output power.

The JD D140 is equipped with manual steering, mechanical shoe on transaxle brakes, open operator station and 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank, version for California used 9.1 liters (2.4 US gal) fuel tank.

Following attachments are available for the John Deere D140 lawn tractor:

  • John Deere Edge 48: mid-mount 48 in (1,210 mm) 3-blade mower deck with manual spring assisted lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 43.25 in (1,090 mm) front-mount snowblower

John Deere D140 Specifications

General Specifications
Model John Deere D140
Length 1,750 mm (68.9 in)
Width 1,520 mm (59.8 in)
Height 1,140 mm (44.9 in)
Wheel base 1,240 mm (48.8 in)
Weight 238 kg (524.7 lbs)
Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 40
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 656 cm2, (40 cu·in)
Bore and stroke 75.44 mm X 73.41 mm (2.97 in X 2.89 in)
Horsepower 22.3 PS (16.4 kW; 22 HP)
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug Champion RC12YC
Spark plug gap 0.76 mm (0.030 in.)
Engine
Engine model Briggs & Stratton 44
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower 22.3 PS (16.4 kW; 22 HP) at rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical shoe on transaxle
Transmission model Kanzaki / Tuff Torq T40
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×10.00-8
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped –
