John Deere E100

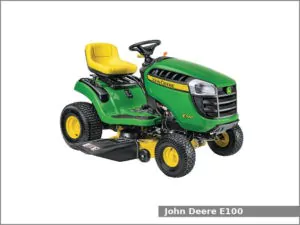

John Deere E100The John Deere E100 is a 2WD lawn tractor from the E100 series. This tractor has been manufactured by the John Deere in Greeneville, Tennessee, USA since 2018. The J E100 is equipped with a 0.5 L single-cylinder gasoline engine and belt-driven CVT transmission with infinite forward and reverse gears.

The John Deere E100 lawn tractor used the Briggs & Stratton 31R977 engine. It is a 0.5 L, 500 cm2, (30.5 cu·in) single-cylinder natural aspirated gasoline engine with 91.0 mm (3.58 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 17.7 PS (13.0 kW; 17.5 HP) of maximum output power.

The JD E100 is equipped with manual steering, cone clutch brakes, open operator station, and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for the John Deere E100 lawn tractor:

  • John Deere 42: mid-mount 42 in (1,060 mm) 2-blades mower deck with manual lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 44 in (1,110 mm) front-mount snowblower

John Deere E100 Specifications

General Specifications
ModelJohn Deere E100
Length1,750 mm (68.9 in)
Width1,380 mm (54.3 in)
Height1,020 mm (40.2 in)
Wheel base1,240 mm (48.8 in)
Weight189 kg (417 lbs)
Fuel tank capacity9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery12V, BCI Group U1
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 31R977
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke91.0 mm X 78.0 mm (3.58 in X 3.07 in)
Horsepower17.7 PS (13.0 kW; 17.5 HP)
StarterElectric
Oil typeSAE 10W-30; API: SG or SF
Oil capacity1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug gap0.76 mm (0.030 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesCone clutch
Transmission modelGeneral Transmission RT400
Transmission typeBelt-driven CVT
GearsInfinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 4.8 (3 mph)
Tires
Front tiresLawn/turf: 15×6-6
Rear tiresLawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with manual clutch
Middle PTO spped
