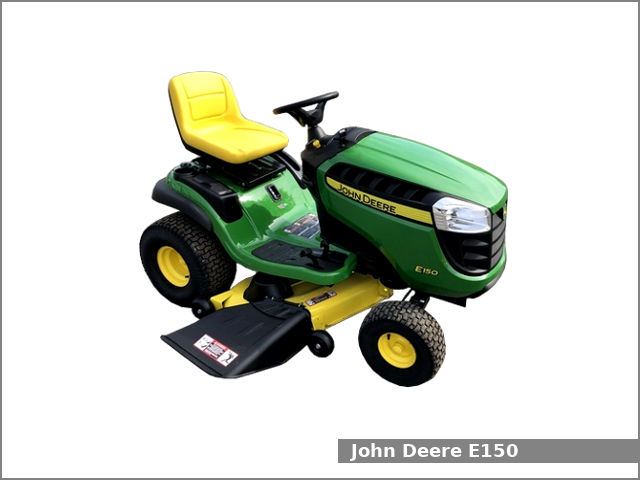

John Deere E150

John Deere E150The John Deere E150 is a 2WD lawn tractor from the E100 series. This tractor has been manufactured by the John Deere in Greeneville, Tennessee, USA since 2018. The JD E150 is equipped with a 0.7 L V-twin gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere E150 lawn tractor used the Briggs & Stratton 44N677 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 22.3 PS (16.4 kW; 22.0 HP) of maximum output power.

The John Deere E150 is equipped with manual steering, wet disc brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for the John Deere E150 lawn tractor:

  • John Deere 48: mid-mount 48 in (1,210 mm) mower deck with 3-blades and manual lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 44 in (1,110 mm) front-mount snowblower

John Deere E150 Specifications

General Specifications
Model John Deere E150
Length 1,770 mm (69.7 in)
Width 1,520 mm (59.8 in)
Height 1,130 mm (44.5 in)
Wheel base 1,240 mm (48.8 in)
Weight 218 kg (480 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V, CCA: 300A, BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 44N677
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower 22.3 PS (16.4 kW; 22.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity With Easy Change 30-Second Oil Change System:
2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Wet disc
Transmission model Tuff Torq TL200
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×10-8
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO spped
