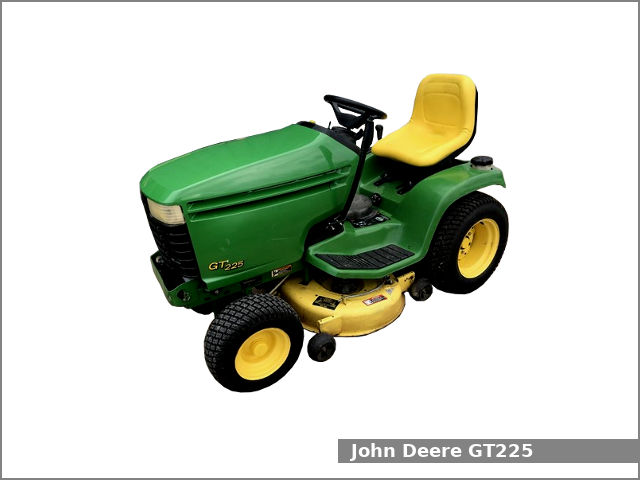

John Deere GT225

John Deere GT225The John Deere GT225 is a 2WD lawn and garden tractor from the GT200 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 1999 to 2003.

The John Deere GT225 is equipped with one of two engines: the Kohler CV15S (from the start of production until 2002) or the Kohler CV460S (from 2002 until the end of production) and hydrostatic transmission with infinite forward and reverse gears.

The JD GT225 is equipped with the manual sector and pinion steering, open operator station, and 10.4 liters (2.7 US gal.; 2.3 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Kohler CV15S. It is a 0.4 L, 426 cm2, (26.0 cu·in) single-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of maximum output power.
  • Kohler CV460S. It is a 0.5 L, 458 cm2, (27.9 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 87.0 mm (3.43 in) and the piston stroke is 77.0 mm (3.03 in). This engine produced 16.2 PS (11.9 kW; 16.0 HP) of maximum output power.

Following attachments are available for the John Deere GT225 garden tractor:

  • Mid-mount John Deere 42 in (1,060 mm) mower deck with manual lift
  • Front-mount John Deere 42 in (1,060 mm) blade
  • Front-mount John Deere BM18789 42 in (1,060 mm) single-stage snow blower with manual lift

John Deere GT225 Specifications

General Specifications
Model John Deere GT225
Length 1,820 mm (71.7 in)
Width Narrow: 990 mm (39.0 in)
Wide: 1,050 mm (41.7 in)
Height 1,100 mm (43.3 in)
Wheelbase
Weight 252 kg (555 lbs)
Fuel tank capacity 10.4 liters (2.7 US gal.; 2.3 Imp. gal)
Battery 12V, CCA 500A, Group 51
Cabin type Open operator station
Engine
Engine model Kohler CV15S
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 426 cm2, (26.0 cu·in)
Bore and stroke 90.0 mm X 67.0 mm (3.54 in X 2.64 in)
Horsepower 15.2 PS (11.2 kW; 15.0 HP)
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug gap 1.02 mm (0.040 in)
Engine
Engine model Kohler CV460S
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 458 cm2, (27.9 cu·in)
Bore and stroke 87.0 mm X 77.0 mm (3.43 in X 3.03 in)
Horsepower 16.2 PS (11.9 kW; 16.0 HP)
Starter electric
Oil type SAE 10W-30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector and pinion
Brakes
Transmission model Tuff Torq K71
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 4.4 L (1.2 US. gal, 1 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×10.5-12
Three-Point Hitch
Caterogy Sleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
