John Deere GX85

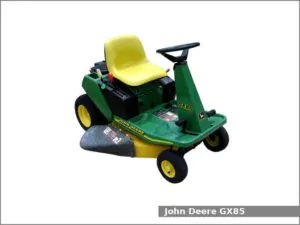

John Deere GX85The John Deere GX85 is a 2WD riding mower from the GX series. This tractor was manufactured by the John Deere from 1997 to 2003. The John Deere GX85 is equipped with a 0.5 L single-cylinder gasoline engine and gear type transmission with 5 forward and 1 reverse gear.

The John Deere GX85 riding mower used the Briggs & Stratton 28M707 engine. It is a 0.5 L, 465 cm2, (28.4 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 13.2 PS (9.7 kW; 13.0 HP) of maximum output power.

The John Deere GX85 is equipped with manual steering, disc brakes, open operator station, 4.7 liters (1.2 US gal.; 1 Imp. gal) fuel tank and mid-mount John Deere 30 in (760 mm) mower deck with a single blade.

John Deere GX85 Specifications

General Specifications
Model John Deere GX85
Length 1,540 mm (60.6 in)
Width 660 mm (26 in)
Height 990 mm (39 in)
Wheel base 1,060 mm (41.7 in)
Weight 155 kg (342 lbs)
Fuel tank capacity 4.7 liters (1.2 US gal.; 1 Imp. gal)
Battery 12V, CCA 160A
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 28M707
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 465 cm2, (28.4 cu·in)
Bore and stroke 87.0 mm X 78.0 mm (3.43 in X 3.07 in)
Horsepower 13.2 PS (9.7 kW; 13.0 HP)
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.6 L (1.7 US. qt, 1.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission model
Transmission type Gear type
Gears 5 forward and 1 reverse
Speed Forward: 8.0 kmh (5 mph) Reverse: 3.1 (1.9 mph)
Tires
Front tires Lawn/turf: 11×4.00-5
Rear tires Lawn/turf: 16×6.50-8
PTO (Power take-off shaft)
Middle PTO type Independent with mechanical clutch
Middle PTO spped
