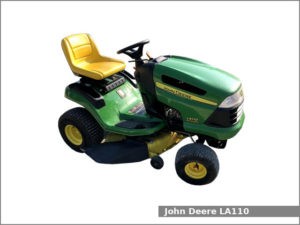

The John Deere LA110 is a lawn and garden tractor from the John Deere LA100-series. The John Deere LA110 lawn tractor was produced at the factory in Greeneville, Tennessee, USA in 2007.
The John Deere LA110 garden tractor used an air-cooled single-cylinder four-stroke Briggs & Stratton 31 gasoline engine with vertical PTO-shaft. A 90.7 mm (3.57 in) cylinder bore and 77.7 mm (3.06 in) piston stroke give the motor a total of 500 cc (30.5 cu-in) of displacement. This engine produced 19.5 HP (14.5 kW) of horsepower.
The John Deere LA110 used belt-driven hydrostatic type transmission Tuff Torq T40 (infinite forward and reverse), manual steering and open operator station. This lawn tractor was equipped with mid-mount John Deere 1060.0 mm (42 in) mower deck with 2-blade and manual lift.
John Deere LA110 Specifications
|Model||John Deere LA110|
|Length||1,750 mm (68.7 in)|
|Width||1,310 mm (51.7 in)|
|Height||1,130 mm (44.5 in)|
|Wheel base||1,240 mm (48.9 in)|
|Weight||204 kg (450 lb)|
|Fuel tank capacity||–|
|Engine model||Briggs & Stratton 31|
|Displacement||500 cc (30.5 cu-in)|
|Bore x stroke||90.7 x 77.7 mm (3.57 x 3.06 in)|
|Power output||19.5 HP (14.5 kW)|
|Starter type||Electric starter|
|Oil capacity||1.4 L (1.5 US. qt)|
|Spark plug||CHAMPION: RC12YC|
|Transmission and chassis|
|Transmission type||Hydrostatic (Tuff Torq T40)|
|Gears||Infinite forward and reverse|
Forward: up to 8.9 kmh (5.5 mph)
Reverse: up to 5.2 kmh (3.2 mph)
|Wheels and tires|
|Front tires||Lawn/turf: 15×6.00-6|
|Rear tires||Lawn/turf: 20×8.00-8|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
