John Deere LT190

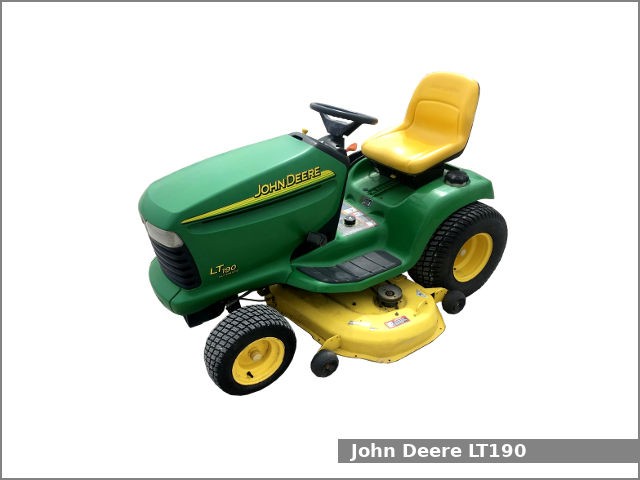

John Deere LT190The John Deere LT190 is a 2WD lawn tractor from the LT series. This tractor was manufactured by John Deere in Horicon, Wisconsin, USA from 2004 to 2005. The John Deere LT190 is equipped with a 0.6 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The John Deere LT190 lawn tractor used the Kawasaki FH580V engine. It is a 0.6 L, 585 cm2, (35.7 cu·in) V-twin natural aspirated gasoline engine with 74.0 mm (2.91 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) of maximum output power.

The John Deere LT190 is equipped with manual steering, open operator station, 7.5 liters (2 US gal.; 1.6 Imp. gal) fuel tank, and mid-mount John Deere 48 in (1,210 mm) mower deck with manual lift.

John Deere LT190 Specifications

General Specifications
Model John Deere LT190
Length 1,720 mm (67.7 in)
Width 940 mm (37 in)
Height 1,060 mm (41.7 in)
Wheel base
Weight 250 kg (551 lbs)
Fuel tank capacity 7.5 liters (2 US gal.; 1.6 Imp. gal)
Battery 12V, CCA 160A
Cabin type Open operator station
Engine
Engine model Kawasaki FH580V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 585 cm2, (35.7 cu·in)
Bore and stroke 74.0 mm X 68.0 mm (2.91 in X 2.68 in)
Horsepower 18.2 PS (13.4 kW; 18.0 HP)
Starter Electric
Oil type SAE 10W-40, 10W-30, API: SF, S
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug NGK: BPMR6A
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Tuff Torq K46HD
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 5.6 (3.5 mph)
Tires
Front tires Lawn/turf: 15×6.5-8
Rear tires Lawn/turf: 22×11-10
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
