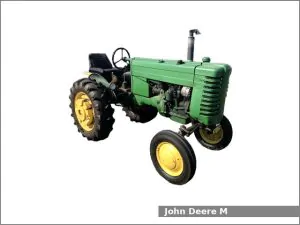

John Deere MThe John Deere M is a 2WD utility tractor from the Two-Cylinder Letter series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA from 1947 to 1952. The John Deere model M is equipped with a 1.6 L (100.5 cu·in) two-cylinder gasoline engine and unsynchronized gear transmission with 4 forward and 1 reverse gears.

The JD M utility tractor used the John Deere engine. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) two-cylinder natural aspirated gasoline engine with 102.0 mm (4.02 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 18.2 PS (13.4 kW; 18.0 HP) of output power.

The John Deere M is equipped with manual steering, differential mechanical disc brakes, an open operator station, and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

John Deere M Specifications

General Specifications
Model John Deere M
Length 2,790 mm (109.8 in)
Width 1,290 mm (50.8 in)
Height 1,420 mm (55.9 in)
Wheel base
Weight 1,179 kg (2,599 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 102.0 mm X 102.0 mm (4.02 in X 4.02 in)
Compression ratio 6.0:1
Horsepower (drawbar) 18.2 PS (13.4 kW; 18.0 HP)
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical disc
Transmission model
Transmission type Unsynchronized gear
Gears 4 forward and 1 reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 2.6 kmh (1.6 mph)
Tires
Front tires Ag: 4.00×15
Rear tires Ag: 8×24
Three-Point Hitch
Type Deere Quik-Tatch
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 550 rpm
Hydraulic system
Hydraulic type Touch-O-Matic
Pressure 700 psi (48.3 bar)
Total flow 4.25 gpm (16.1 lpm)
