John Deere SX75

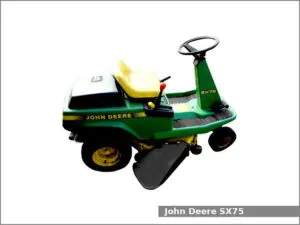

John Deere SX75The John Deere SX75 is a 2WD riding mower from the SX series. This tractor was manufactured by John Deere from 1987 to 1990. The John Deere SX75 is equipped with a 0.3 L (17.5 cu·in) single-cylinder gasoline engine and a mechanical variable transmission with 7 forward and 1 reverse gear.

The John Deere SX75 riding mower used the Kawasaki FC290V engine. It is a 0.3 L, 286 cm2, (17.5 cu·in) single-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 60.0 mm (2.36 in) of the piston stroke. This engine produced 9.1 PS (6.7 kW; 9.0 HP) of output power.

The John Deere SX75 is equipped with manual steering, disc brakes, open operator station, 3.8 liters (1 US gal.; 0.8 Imp. gal) fuel tank, and mid-mount the John Deere 30 in (760 mm) mower deck with 1-blade.

John Deere SX75 Specifications

General Specifications
Model John Deere SX75
Length 1,540 mm (60.6 in)
Width 660 mm (26 in)
Height 990 mm (39 in)
Wheel base 1,060 mm (41.7 in)
Weight 176 kg (388 lbs)
Fuel tank capacity 3.8 liters (1 US gal.; 0.8 Imp. gal)
Battery 12V, CCA 160A
Cabin type Open operator station
Engine model Kawasaki FC290V
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 286 cm2, (17.5 cu·in)
Bore and stroke 78.0 mm X 60.0 mm (3.07 in X 2.36 in)
Horsepower 9.1 PS (6.7 kW; 9.0 HP)
Starter Electric
Oil type API: SF, SE, SD; SAE: 10W-30
Oil capacity: 1.1 L (1.2 US. qt, 1 Imp. qt.)
Spark plug Champion RN11YC, NGK BPR5ES
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission model
Transmission type Mechanical variable transmission
Gears 7 forward and 1 reverse
Speed Forward: 8.7 kmh (5.4 mph) Reverse: 3.9 (2.4 mph)
Front tires Lawn/turf: 11×4.00-5
Rear tires Lawn/turf: 16×6.50-8
PTO (Power take-off shaft)
Middle PTO type Independent with mechanical clutch
Middle PTO speed
