John Deere X105

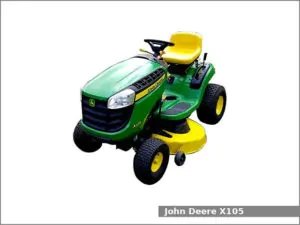

John Deere X105The John Deere X105 is a 2WD lawn tractor from the X100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2011 to 2017. The John Deere X105 is equipped with a 0.3 L (20.7 cu·in) single-cylinder gasoline engine and an automatic transmission with infinite forward and reverse gears.

The John Deere X105 lawn tractor used the Briggs & Stratton 21 engine. It is a 0.3 L, 340 cm2, (20.7 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 57.0 mm (2.24 in) of the piston stroke. This engine produced 9.4 PS (6.9 kW; 9.2 HP) at 3,350 rpm of output power.

The John Deere X105 is equipped with manual steering, open operator station, 9.1 liters (2.4 US gal.; 2 Imp. gal) fuel tank, and mid-mount the John Deere 42 in (1,060 mm) mower deck with a manual lift.

John Deere X105 Specifications

General Specifications
Model John Deere X105
Length 1,750 mm (68.9 in)
Width 1,170 mm (46.1 in)
Height 1,240 mm (48.8 in)
Wheel base 1,220 mm (48 in)
Weight 186 kg (410 lbs)
Fuel tank capacity 9.1 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V, BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 21
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 340 cm2, (20.7 cu·in)
Bore and stroke 87.0 mm X 57.0 mm (3.43 in X 2.24 in)
Horsepower 9.4 PS (6.9 kW; 9.3 HP) at 3,350 rpm
Starter Electric
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model General Transmission TM RT400
Transmission type Automatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 4.8 (3 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with mechanical clutch
Middle PTO speed
