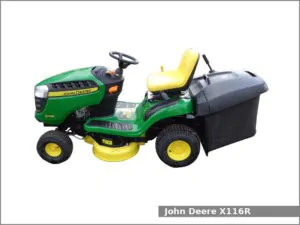

The John Deere X116R is a 2WD rear-discharge mower from the X100 series. This tractor has been manufactured by John Deere in Greeneville, Tennessee, USA since 2018. The John Deere X116R is equipped with a 0.3 L (20.7 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The John Deere X116R rear-discharge mower used the Briggs & Stratton Model 21 engine. It is a 0.3 L, 339 cm2, (20.7 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 57.0 mm (2.24 in) of the piston stroke. This engine produced 10.3 PS (7.6 kW; 10.2 HP) of output power.
The John Deere X116R is equipped with manual steering, open operator station, 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank, and mid-mount the John Deere 36 in (910 mm) mower deck with 2-blades and a manual lift.
John Deere X116R Specifications
General Specifications | |
Model | John Deere X116R |
Length | 2,527 mm (99.5 in) |
Width | 960 mm (37.8 in) |
Height | 1,140 mm (44.9 in) |
Wheel base | – |
Weight | 230 kg (507 lbs) |
Fuel tank capacity | 7.6 liters (2 US gal.; 1.7 Imp. gal) |
Battery | 12V Type BCI Group U1 |
Cabin type | Open operator station |
Engine | |
Engine model | Briggs & Stratton Model 21 |
Engine type | Four-stroke, air-cooled, |
Cylinders | 1 |
Fuel type | Gasoline |
Displacement | 0.3 L, 339 cm2, (20.7 cu·in) |
Bore and stroke | 87.0 mm X 57.0 mm (3.43 in X 2.24 in) |
Horsepower | 10.3 PS (7.6 kW; 10.2 HP) |
Starter | Electric |
Oil type | SAE 10W-30, 10W-40 |
Oil capacity: | 1.4 L (1.5 US. qt, 1.2 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD |
Steering type | Manual |
Brakes | – |
Transmission model | Tuff Torq K46EE |
Transmission type | Hydrostatic |
Gears | Infinite forward and reverse |
Speed | Forward: 8.2 kmh (5.1 mph) Reverse: 4.8 (3 mph) |
Tires | |
Front tires | Lawn/turf: 15×6.00-6 |
Rear tires | Lawn/turf: 18×8.5-8 |
PTO (Power take-off shaft) | |
Middle PTO type | Independent with electric clutch |
Middle PTO speed | – |
