John Deere X330

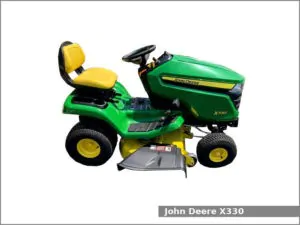

John Deere X330The John Deere X330 is a lawn and garden tractor from the John Deere X-series. The John Deere X330 garden tractor has been produced from 2016.

The John Deere X330 tractor used an air-cooled twin-cylinder four-stroke Briggs & Stratton 44J677 gasoline engine with vertical PTO-shaft. A 79.25 mm (3.12 in) cylinder bore and 73.4 mm (2.89 in.) piston stroke give the motor a total 724 cc (44.2 cu-in) of displacement. The Briggs & Stratton 44 engine produced 20.0 HP (14.9 kW) of output horsepower.

The John Deere X330 is equipped with belt-driven hydrostatic transmission Tuff Torq / Kanzaki K46 (infinite forward and reverse), wet disk brakes and manual steering. This tractor used an open operator station, independent middle PTO-Shaft with electric clutch and 12.5 L (3.3 US gal.) fuel tank.

Following attachments are available for The John Deere X330 garden tractor:

  • Mid-mount John Deere 42 (Accel Deep) – 1060.0 mm (42 in) mower deck with 2-blade and manual lift
  • Mid-mount John Deere 42 (Edge) – 1060.0 mm (42 in) mower deck with 2-blade and manual lift
  • Front-mount John Deere 44 – 1110.0 mm (42 in) blade with manual lift
  • Front-mount John Deere 44 – 1110.0 mm (46 in) two-stage snow blower

John Deere X330 Specifications

General Specifications
Model John Deere X330
Length 1,730 mm (72 in)
Width 970 mm (38 in)
Height 1,090 mm (43.0 in)
Wheel base 1,250 mm (49.4 in)
Weight 210 kg (463 lb)
Fuel tank capacity 15.1 L (4 US gal.)
Battery 12V
Engine model Briggs & Stratton 44J677
Fuel Gasoline
Displacement 724 cc (44.2 cu-in)
Bore x stroke 79.2 x 73.4 mm (3.12 x 2.89 in)
Power output 20.0 HP (14.9 kW)
Starter type Electric starter
Oil type 10W-30
Oil capacity 1.9 L (2.0 US. qt)
Spark plug CHAMPION: RC12YC
Transmission and chassis
Chassis 4×2 (2WD)
Transmission type Hydrostatic (Tuff Torq / Kanzaki K46)
Gears Infinite forward and reverse
Ground speed Forward: up to 8.9 kmh (5.5 mph)
Reverse: up to 6.4 kmh (4.0 mph)
Wheels and tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×10.00-8
