John Deere X394

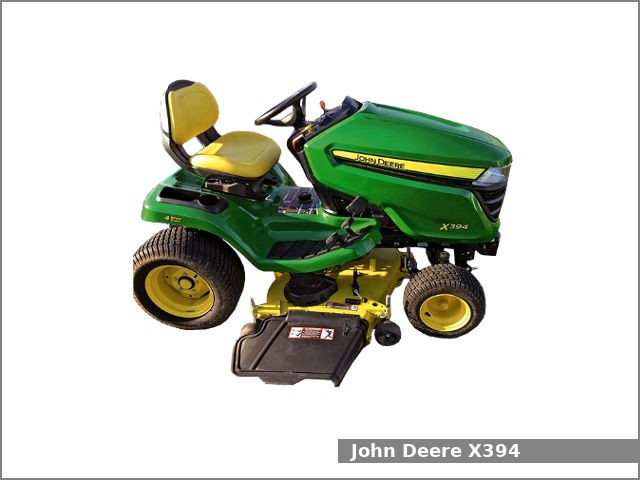

John Deere X394The John Deere X394 is a lawn and garden tractor from the John Deere X-series. The John Deere X394 garden tractor was produced from 2016.

The John Deere X394 lawn tractor used the Kawasaki FS651V. It is a 726 cc (44.3 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline engine with a vertical shaft. The FS651V has an overhead V-valves, cast iron cylinder liners, and spherical combustion chamber. The engine is equipped with the electronic spark ignition system, internally vented carburetor with fuel shut-off solenoid. It has a 78.0 mm (3.07 in) cylinder bore and 76.0 mm (2.99 in) piston stroke. Compression ratio rating is 8.2:1. The Kawasaki FS651V produced 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of maximum horsepower and 53.3 Nm (5.4 kg·m; 39.3 ft·lb) at 2,000 rpm of torque.

The John Deere X394 tractor is equipped with the Kanzaki K58 (Tuff Torq K58) variable speed hydrostatic transmission (infinite forward and reverse), wet disc brakes and power four-wheel steering. This tractor used open operator station, independent PTO-shaft with electric clutch and 12.5 L (3.3 US gal) fuel tank.

Following attachments are available for The John Deere X394 garden tractor:

  • Mid-mount John Deere 48 (Accel Deep Mower) – 1,220 mm (48 in) mower deck with 3-blade and manual lift
  • Front-mount blade – 1,110 mm (44 in) with manual lift
  • Front-mount snow blower – 1,110 mm (44 in) dual-stage with hydraulic lift

John Deere X394 Specifications

General Specifications
Model John Deere X394
Length 1,730 mm (72 in)
Width 1,040 mm (38.5 in)
Height 1,090 mm (41in)
Wheel base 1,250 mm (49.4 in)
Weight (without mower deck) 278 kg (612 lbs)
Fuel tank capacity 12.5 L (3.3 US gal)
Battery 12V
Engine Kawasaki FS651V
Engine model FS651V
Fuel Gasoline
Displacement 726 cc (44.3 cu.in.)
Bore x stroke 78.0 x 76.0 mm (3.07 x 2.99 in.)
Power output 22.0 HP (16.4 kW) at 3,600 rpm
Starter type Electric starter
Oil type 10W-30
Oil capacity 2.1 L (2.2 US.qt.)
Spark plug NGK: BPR4ES
Transmission and chassis
Chassis 4×2 (2WD)
Transmission type Hydrostatic transmission (Kanzaki / Tuff Torq K58)
Gears Infinite forward and reverse
Ground speed Forward: up to 10.0 kmh (6.2 mph)
Reverse: up to 5.6 kmh (3.5 mph)
Wheels and tires
Front tires Lawn/turf: 15×6.50-8
Rear tires Lawn/turf: 22×9.5-12
