John Deere X700

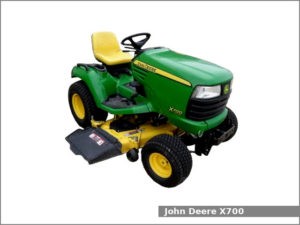

John Deere X700The John Deere X700 is a lawn and garden tractor from the John Deere X-series. The John Deere X700 garden tractor is produced at the John Deere Horicon Works plant (Horicon, Wisconsin, USA) from 2006 to 2012.

The John Deere X700 lawn tractor used the Kawasaki FD671D engine. The Kawasaki FD671D is a 745 cc, 45.5 cu-in V-twin 90° liquid-cooled 4-stroke internal combustion small gasoline motor with horizontal shaft. The FD671D has OHV (overhead valve design); cast-iron cylinder liners; float type carburetor with fixed main jet; transistorized fuel pump; full transistor ignition system. Bore and stroke are 78.0 mm (3.07 in) and 78.0 mm (3.07 in), respectively. Compression ratio rating is 8.0:1. The Kawasaki FD671D produced 23 HP (17.2 kW) at 3,600 rpm.

The John Deere X700 tractor is equipped with the Tuff Torq K92 two-pedal foot control hydrostatic transmission (infinite forward and reverse), wet disk brakes, power steering. This tractor used open operator station and 24.6 L (6.5 US gal) or 19.7 L (5.2 US gal) after 2011.

Following attachments are available for the John Deere X700 garden tractor:

  • Mid-mount John Deere 48C – 1,220 mm (48 in) mower deck with 3-blade and hydraulic lift
  • Mid-mount John Deere 54C – 1,370 mm (54 in) mower deck with 3-blade and hydraulic lift
  • Mid-mount John Deere 60C – 1,520 mm (60 in) mower deck with 3-blade and hydraulic lift
  • Mid-mount John Deere 62C – 1,570 mm (62 in) mower deck with 3-blade and hydraulic lift
  • John Deere 45 loader

John Deere X700 Specifications

General Specifications
ModelJohn Deere X700
Length2,000 mm (78.8 in)
Width1,180 mm (46.8 in)
Height1,190 mm (47.0 in)
Wheel base1,380 mm (54.5 in)
Weight (without mower deck)381kg (840 lb)
Fuel tank capacity Before 2011 – 24.6 L (6.5 US gal)
After 2011 – 19.7 L (5.2 US gal)
Battery12V
Engine
Engine modelFD671D
FuelGasoline
Displacement745 cc (45.5 cu.in.)
Bore x stroke78.0 x 78.0 mm (3.07 x 3.07 in.)
Power output23 HP (17.2 kW) at 3,600 rpm
Starter typeElectric starter
Oil type10W-30
Oil capacity1.8 L (1.9 US.qt.)
Spark plugNGK: BPR2ES
Transmission and chassis
Chassis4×2 (2WD)
Transmission typeHydrostatic transmission (Tuff Torq K92)
GearsInfinite forward and reverse
Ground speed Forward: up to 13.7 kmh (8.5 mph)
Reverse: up to 8.0 kmh (5.0 mph)
Wheels and tires
Front tiresLawn/turf: 18×8.5-8
Rear tiresLawn/turf: 26×12-12
