John Deere X750

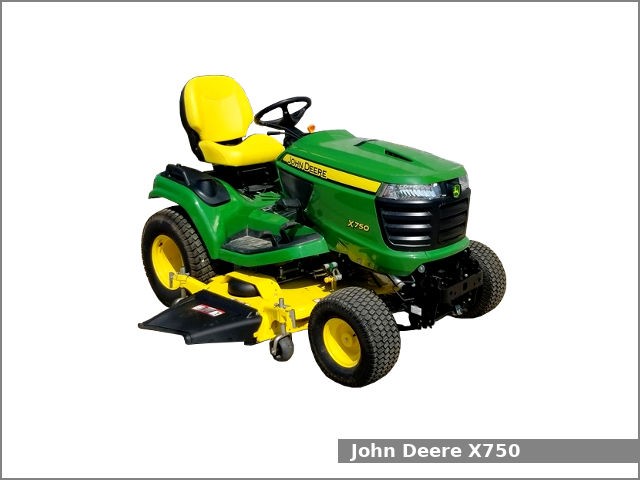

John Deere X750The John Deere X750 is a 2WD lawn and garden tractor from the X700 series. This tractor has been manufactured by John Deere in Horicon, Wisconsin, USA since 2013. The John Deere X750 is equipped with a 1.0 L (60.6 cu·in) three-cylinder diesel engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere X750 garden tractor used the Yanmar 3TNM74 engine. It is a 1.0 L, 993 cm2, (60.6 cu·in) three-cylinder natural aspirated diesel engine with 74.0 mm (2.91 in) of the cylinder bore and 77.0 mm (3.03 in) of the piston stroke. The compression ratio rating is 23.2:1. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power. The export version of this tractor used the Yanmar 3TNM72 engine.

The JD X750 is equipped with hydrostatic power steering, internal wet disc brakes, open operator station, and 19.7 liters (5.2 US gal.; 4.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere X750 garden tractor:

  • Mid-mount John Deere: 48 in (1,210 mm) mower deck with 3-blades
  • Mid-mount John Deere: 54 in (1,370 mm) mower deck with 3-blades
  • Mid-mount John Deere: 60 in (1,510 mm) mower deck with 3-blades
  • Front-mount John Deere: 54 in (1,370 mm) dual-stage snowblower with hydraulic lift

John Deere X750 Specifications

General Specifications
Model John Deere X750
Length 2,010 mm (79.1 in)
Width 1,190 mm (46.9 in)
Height 1,350 mm (53.1 in)
Wheel base 1,380 mm (54.3 in)
Weight 430 kg (948 lbs)
Fuel tank capacity 19.7 liters (5.2 US gal.; 4.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station
Engine
Engine model Yanmar 3TNM74
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 993 cm2, (60.6 cu·in)
Bore and stroke 74.0 mm X 77.0 mm (2.91 in X 3.03 in)
Compression ratio 23.2:1
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Oil capacity: 3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Internal wet disc
Transmission model Tuff Torq K90
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.5 kmh (5.3 mph) Reverse: 5.0 (3.1 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12-12
Three-Point Hitch
Caterogy 0 (optional) or I Limited (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electro-hydraulic clutch
Front PTO speed rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
