John Deere D130

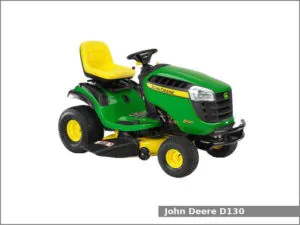

John Deere D130The John Deere D130 is a 2WD lawn tractor from the D100 series. This tractor was manufactured by John Deere in Greeneville, Tennessee, USA from 2011 to 2017. The JD D130 is equipped with one of two transmissions: a 0.66 L V-twin Briggs & Stratton 407777 gasoline engine or a 0.72 L V-twin Briggs & Stratton 44 gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The tractor could be equipped with the following engines:

  • Briggs & Stratton 407777. It is a 0.7 L, 656 cm2, (40.0 cu·in) two-cylinder natural aspirated gasoline engine with 75.4 mm (2.97 in) of the cylinder bore and 73.4 mm (2.89 in) of the piston stroke. This engine produced 22.3 PS (16.4 kW; 22.0 HP) of maximum output power.
  • Briggs & Stratton 44. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 79.0 mm (3.11 in) and the piston stroke is 73.0 mm (2.87 in). This engine produced 22.3 PS (16.4 kW; 22.0 HP) of maximum output power.

The JD D130 is equipped with manual steering, mechanical shoe on transaxle brakes, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Following attachments are available for John Deere D130 lawn tractor:

  • John Deere 42: mid-mount 42 in (1,060 mm) 2-blades mower deck with manual spring assisted lift
  • John Deere 46: 46 in (1,160 mm) front-mount blade
  • John Deere 44: 43.25 in (1,090 mm) front-mount snowblower

John Deere D130 Specifications

General Specifications
Model John Deere D130
Length 1,750 mm (68.9 in)
Width 1,310 mm (51.6 in)
Height 1,130 mm (44.5 in)
Weight 213 kg (469 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 407777
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 656 cm2, (40.0 cu·in)
Bore and stroke 75.4 mm X 73.4 mm (2.97 in X 2.89 in)
Horsepower 22.3 PS (16.4 kW; 22.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Intake / exhaust valve clearance 0.102-0.152 mm (0.004-0.006 in.)
Engine
Engine model Briggs & Stratton 44
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower 22.3 PS (16.4 kW; 22.0 HP)
Starter Electric
Oil type SAE 10W-30; API: SG or SF
Oil capacity: 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical shoe on transaxle
Transmission model Kanzaki Tuff Torq T40
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Transmission model Tuff Torq TLT-200
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.9 kmh (5.5 mph) Reverse: 5.2 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×10-8
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped
