John Deere RX63

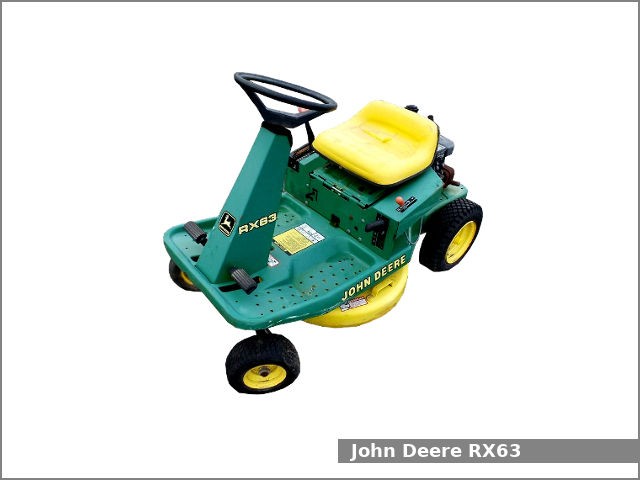

John Deere RX63The John Deere RX63 is a riding lawn mower with small single cylinder Kawasaki FA210 horizontal shaft engine (207 cc, 12.7 cu.in.) and mechanical variable transmission (seven forward and one reverse). The John Deere RX63 riding lawn mower was manufactured from 1987 to 1990.

The John Deere RX63 lawn mower used an air-cooled single-cylinder four-stroke Kawasaki FA210 gasoline engine with horizontal PTO shaft and manual recoil starter. The FA210 engine has a slide-valve (L-head) design; pulse pump type carburetor and flywheel magneto ignition system. Bore and stroke are 72.0 mm (2.83 in) and 51.0 mm (2.01 in), respectively. The engine a compression ratio rating is 6.4:1. The Kawasaki FA210 on John Deere RX63 produced 6.1 PS (4.5 kW; 6.0 HP) at 3,600 rpm of horsepower.

The John Deere RX63 used the mechanical variable transmission, disc brakes, manual steering, open operator station, and 1.9 L (0.5 US gal) fuel tank. The John Deere RX63 is equipped with mid-mount John Deere 1,040 mm (41 in) mower deck with a single blade.

John Deere RX63 Specifications

General Specifications
Model John Deere RX63
Length 1,540 mm (61 in)
Width 660 mm (26 in)
Height 990 mm (39 in)
Wheel base 1,060 mm (42 in)
Dry weight 139 kg (307 lbs)
Fuel tank capacity 1.9 L (0.5 gal)
Engine
Engine model Kawasaki FA210
Fuel Gasoline
Displacement 207 cc (12.67 cu-in)
Bore x stroke 72.0 x 51.0 mm (2.83 x 2.01 in)
Power output 6.1 PS (4.5 kW; 6.0 HP) at 3,600 rpm
Starter type Recoil starter
Oil type 10W-30
Oil capacity 0.7 L (0.75 qt)
Spark plug NGK: BM6A;
Transmission and chassis
Chassis 4×2 (2WD)
Transmission type Mechanical variable transmission
Gears 7 forward and 1 reverse
Ground speed Forward: up to 8.7 kmh (5.4 mph)
Reverse: up to 3.9 kmh (2.4 mph)
Wheels and tires
Front tires Lawn/turf: 11×4.00-5
Rear tires Lawn/turf: 4.80×4.00-8
