Kioti CK3510

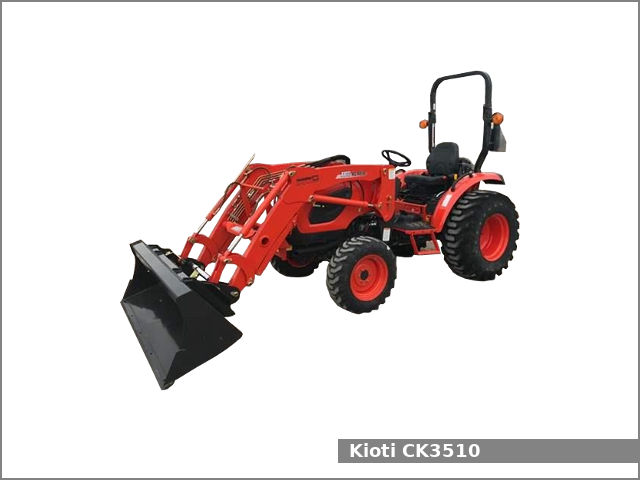

Kioti CK3510The Kioti CK3510 is a 4WD compact utility tractor from the CK10 series. This tractor has been manufactured by Kioti (a part of Daedong) from 2015. The Kioti CK3510 is equipped with a 1.8 L (111.4 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 9 forward and 3 reverse gears and dry disc clutch or a hydrostatic transmission with infinite forward and reverse gears.

The Kioti CK3510 compact utility tractor used the Daedong 3F183 engine. It is a 1.8 L, 1,825 cm2, (111.4 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 35.4 PS (26.0 kW; 35.0 HP) at 2,600 rpm of output power and 115.0 N·m (11.7 kg·m, 84.8 ft·lb) at 1,800 rpm of torque.

The Kioti CK3510 is equipped with power steering, wet disc brakes, two-post folding ROPS or cab with air-conditioning (optional), and 34.0 liters (9 US gal.; 7.5 Imp. gal) fuel tank.

Following attachments are available for the Kioti CK3510 compact utility tractor:

  • Kioti KL4010 loader
  • Kioti KB2475L backhoe

Kioti CK3510 Specifications

General Specifications
Model Kioti CK3510
Length 3,070 mm (120.9 in)
Width 1,390 mm (54.7 in)
Height ROPS: 2,510 mm (98.8 in)
Cab: 2,320 mm (91.3 in)
Wheel base 1,660 mm (65.4 in)
Ground clearance 340 mm (13.4 in)
Weight ROPS: 1,240 kg (2,734 lbs)
Cab: 1,500 kg (3,307 lbs)
Fuel tank capacity 34.0 liters (9 US gal.; 7.5 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab with air-conditioning (optional)
Engine
Engine model Daedong 3F183
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.8 L, 1,825 cm2, (111.4 cu·in)
Bore and stroke 87.0 mm X 102.0 mm (3.43 in X 4.02 in)
Horsepower 35.4 PS (26.0 kW; 35.0 HP) at 2,600 rpm
Torque 115.0 N·m (11.7 kg·m, 84.8 ft·lb) at 1,800 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Gear type with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 23.5 kmh (14.6 mph) Reverse: 15.4 (9.6 mph)
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 25.0 kmh (15.5 mph) Reverse: 25.5 (15.8 mph)
Tires
Front tires Ag: 7-16
Lawn/turf: 28×8.5-15
Rear tires Ag: 11.2-24
Lawn/turf: 41×14-20
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at 610 mm / 24 in) 740 kg (1632 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Live with dry disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2
Total flow 11.7 gpm (44.3 lpm)
