Kioti CS2210

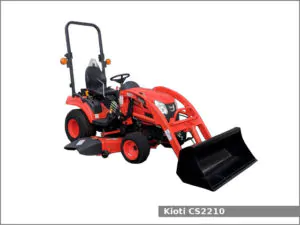

Kioti CS2210The Kioti CS2210 is a 4WD sub-compact utility tractor from the CS series. This tractor has been manufactured by Daedong since 2016. The Kioti CS2210 is equipped with a 1.1 L (69.0 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kioti CS2210 sub-compact utility tractor used the Shibaura S773L-F21 engine. It is a 1.1 L, 1,131 cm2, (69.0 cu·in) three-cylinder natural aspirated diesel engine with 77.0 mm (3.03 in) of the cylinder bore and 81.0 mm (3.19 in) of the piston stroke. The compression ratio rating is 24.0:1. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 3,000 rpm of output power.

The Kioti CS2210 is equipped with power steering, wet disc brakes, two-post folding ROPS or cab (optional), and 25.4 liters (6.7 US gal.; 5.6 Imp. gal) fuel tank.

Following attachments are available for the Kioti CS2210 sub-compact utility tractor:

  • Mid-mount Kioti SM2410 1,520 mm (60 in) mower deck with 3-blades
  • Mid-mount Kioti SL2410 loader
  • Mid-mount Kioti SB2410L backhoe

Kioti CS2210 Specifications

General Specifications
Model Kioti CS2210
Length 2,520 mm (99.2 in)
Width 1,180 mm (46.5 in)
Height 2,230 mm (87.8 in)
Wheel base 1,390 mm (54.7 in)
Ground clearance 160 mm (6.3 in)
Weight 673 kg (1,484 lbs)
Fuel tank capacity 25.4 liters (6.7 US gal.; 5.6 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model Shibaura S773L-F21
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,131 cm2, (69.0 cu·in)
Bore and stroke 77.0 mm X 81.0 mm (3.03 in X 3.19 in)
Compression ratio 24.0:1
Horsepower 21.4 PS (15.7 kW; 21.0 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 16.6 kmh (10.3 mph) Reverse: 11.3 (7 mph)
Tires
Front tires Industrial: 18×8.5-10
Rear tires Industrial: 26×12.00-12
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at 610 mm /24 in) 317 kg (700 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,200 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Total flow 6.5 gpm (24.6 lpm)
