Kioti DK55

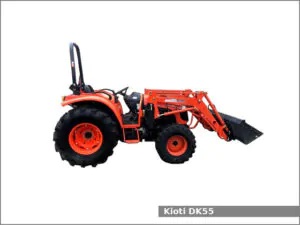

Kioti DK55The Kioti DK55 is a 4WD utility tractor from the DK series. This tractor was manufactured by Daedong in Daegu, South Korea from 2003 to 2013. The Kioti DK55 is equipped with a 2.2 L (134.1 cu·in) four-cylinder diesel engine and a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The Kioti DK55 utility tractor used the Daedong 4A220T engine. It is a 2.2 L, 2,197 cm2, (134.1 cu·in) four-cylinder turbocharged diesel engine. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 2,600 rpm of output power.

The Kioti DK55 is equipped with hydrostatic power steering, wet disc brakes, foldable ROPS or cab (optional), and 68.0 liters (18 US gal.; 15 Imp. gal) fuel tank.

Following attachments are available for the Kioti DK55 utility tractor:

  • Kioti KL1595 loader
  • Kioti KB2385 backhoe

Kioti DK55 Specifications

General Specifications
Model Kioti DK55
Length 3,260 mm (128.3 in)
Width 1,760 mm (69.3 in)
Height (ROPS) 2,700 mm (106.3 in)
Wheel base 1,950 mm (76.8 in)
Ground clearance 440 mm (17.3 in)
Weight ROPS: 2,125 kg (4,685 lbs)
Cab: 2,315 kg (5,104 lbs)
Fuel tank capacity 68.0 liters (18 US gal.; 15 Imp. gal)
Battery
Cabin type Foldable ROPS or cab (optional)
Engine
Engine model Daedong 4A220T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,197 cm2, (134.1 cu·in)
Bore and stroke
Horsepower 55.8 PS (41.0 kW; 55 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Synchronized shuttle
Gears 12 forward and 12 reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: (0 mph)
Tires
Front tires Ag: 9.5-20/6
Lawn/turf: 29×12.5×15/6
strong>Industrial: 12×16.5/6
Rear tires Ag: 14.9-28
Lawn/turf: 21.5Lx16.1/4
Industrial: 17.5×24/8
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 1,198 kg (2,640 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow 9.9 gpm (37.5 lpm)
Steering flow 4.2 gpm (15.9 lpm)
Total flow 14.2 gpm (53.8 lpm)
