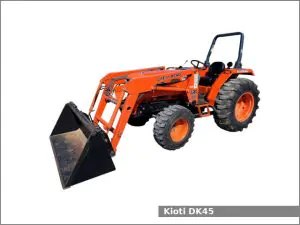

Kioti DK45

Kioti DK45The Kioti DK45 is a 4WD compact utility tractor, manufactured by Kioti (a part of Daedong) in Daegu, South Korea from 2000 to 2007. The Kioti DK45 is equipped with a 2.2 L (134.1 cu·in) four-cylinder diesel engine and a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The Kioti DK45 compact utility tractor used the Daedong 4A220 engine. It is a 2.2 L, 2,197 cm2, (134.1 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 45.7 PS (33.6 kW; 45.1 HP) at 2,600 rpm of gross output power.

The Kioti DK45 is equipped with hydraulic power steering, wet disc brakes, foldable ROPS, and 40.0 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Kioti DK45 Specifications

General Specifications
Model Kioti DK45
Length 3,400 mm (133.9 in)
Width 1,750 mm (68.9 in)
Height 2,440 mm (96.1 in)
Wheel base 1,870 mm (73.6 in)
Ground clearance 40 mm (1.6 in)
Weight 1,720 kg (3,792 lbs)
Fuel tank capacity DK45: 40.0 liters (10.6 US gal.; 8.8 Imp. gal)
DK45S: 58.0 liters (15.3 US gal.; 12.8 Imp. gal)
Battery 12V
Cabin type Foldable ROPS
Engine
Engine model Daedong 4A220
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,197 cm2, (134.1 cu·in)
Bore and stroke 87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Compression ratio 22.0:1
Horsepower 45.7 PS (33.6 kW; 45.1 HP) at 2,600 rpm
Starter Electric
Oil type SAE 15W-40
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity: 8.9 L (9.4 US. qt, 7.8 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydraulic power
Brakes Wet disc
Differential lock Bevel gear
Transmission model
Transmission type Synchronized shuttle
Gears 12 forward and 12 reverse
Speed Forward: 24.6 kmh (15.3 mph)
Transmission oil capacity 34.0 L (9 US. gal, 7.5 Imp. gal.)
Tires
Front tires Ag: 9.5-16
Lawn/turf: 29×12.5-15
Rear tires Ag: 14.9-24
Lawn/turf: 21.5L-16.1
Three-Point Hitch
Category I
Control type Position, draft and mixed control
Lift capacity (at ends) 1,800 kg (3,970 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 8.2 gpm (31 lpm)
Steering flow 4.9 gpm (18.5 lpm)
