Kioti DK50

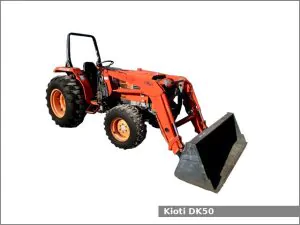

Kioti DK50The Kioti DK50 is a 4WD compact utility tractor manufactured by Kioti (a part of Daedong) in Daegu, South Korea from 2001 to 2005. The Kioti DK50 is equipped with a 2.0 L (122.0 cu·in) four-cylinder diesel engine and a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The Kioti DK50 compact utility tractor used the Daedong 4A200T engine. It is a 2.0 L, 1,999 cm2, (122.0 cu·in) four-cylinder turbocharged diesel engine with 83.0 mm (3.27 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm of output power.

The Kioti DK50 is equipped with hydraulic power steering, wet disc brakes, foldable ROPS or Cab (optional), and 40.0 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Kioti DK50 Specifications

General Specifications
Model Kioti DK50
Length 3,310 mm (130.3 in)
Width 1,540 mm (60.6 in)
Height ROPS: 2,180 mm (85.8 in)
Cab: 2,280 mm (89.8 in)
Wheel base 1,810 mm (71.3 in)
Ground clearance 360 mm (14.2 in)
Weight ROPS: 1,730 kg (3,814 lbs)
Cab: 1,860 kg (4,101 lbs)
Fuel tank capacity 40.0 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V
Cabin type Foldable ROPS or Cab (optional)
Engine
Engine model Daedong 4A200T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.0 L, 1,999 cm2, (122.0 cu·in)
Bore and stroke 83.0 mm X 92.4 mm (3.27 in X 3.64 in)
Compression ratio 22.0:1
Horsepower 49.6 PS (36.5 kW; 49.0 HP) at 2,600 rpm
Starter Electric
Oil type SAE 15W-40
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity: 8.9 L (9.4 US. qt, 7.8 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydraulic power
Brakes Wet disc
Differential lock Bevel gear
Transmission model
Transmission type Synchronized shuttle
Gears 12 forward and 12 reverse
Speed Forward: 23.7 kmh (14.7 mph)
Transmission oil capacity 34.0 L (9 US. gal, 7.5 Imp. gal.)
Tires
Front tires Ag: 9.5-16
Lawn/turf: 29×12.50-15
Rear tires Ag: 14.9-24
Lawn/turf: 21.5×16.1
Three-Point Hitch
Category I
Control type Position, draft and mixed control
Lift capacity (at ends) 1,800 kg (3,970 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 8.2 gpm (31 lpm)
Steering flow 4.9 gpm (18.5 lpm)
