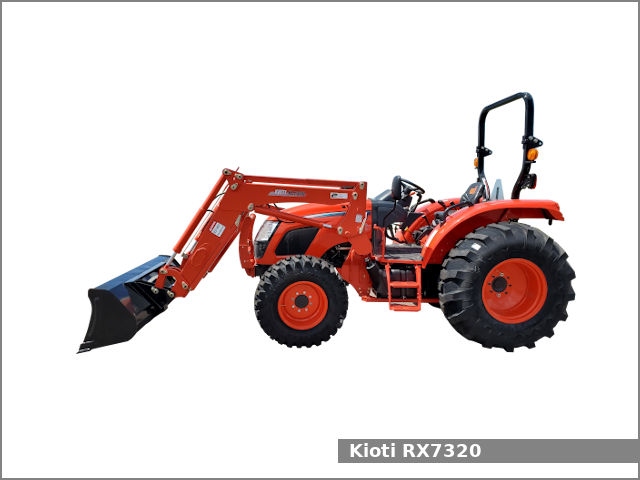

The Kioti RX7320 is a 4WD utility tractor from the RX series. This tractor has been manufactured by Kioti (a part of Daedong) since 2014. The Kioti RX7320 is equipped with a 2.4 L (148.6 cu·in) four-cylinder diesel engine and one of three transmissions: a synchro shuttle transmission with 12 forward and 12 reverse gears, a power shuttle transmission with 12 forward and 12 reverse gears (24 forward and 24 reverse with creeper).
The Kioti RX7320 utility tractor used the Daedong 4F243T engine. It is a 2.4 L, 2,435 cm2, (148.6 cu·in) four-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 74 PS (54.4 kW; 73.0 HP) at 2,600 rpm of output power.
The Kioti RX7320 is equipped with hydrostatic power steering, wet discs brakes, a two-post foldable ROPS or Cab (optional), and 85.2 liters (22.5 US gal.; 18.7 Imp. gal) fuel tank for ROPS version or 94.6 liters (25 US gal, 20.8 Imp. gal) for Cab version.
Kioti RX7320 Specifications
| General Specifications | |
| Model | Kioti RX7320 |
| Length | 3,710 mm (146.1 in) |
| Width | 1,960 mm (77.2 in) |
| Height | ROPS: 2,730 mm (107.5 in) Cab: 2,650 mm (104.3 in) |
| Wheel base | 2,130 mm (83.9 in) |
| Ground clearance | 430 mm (16.9 in) |
| Weight | ROPS: 2,540 kg (5,600 lbs) Cab: 2,795 kg (6,162 lbs) |
| Fuel tank capacity | ROPS: 85.2 liters (22.5 US gal.; 18.7 Imp. gal) Cab: 94.6 liters (25 US gal, 20.8 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post foldable ROPS or Cab (optional) |
| Engine | |
| Engine model | Daedong 4F243T |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.4 L, 2,435 cm2, (148.6 cu·in) |
| Bore and stroke | 87.0 mm X 102.0 mm (3.43 in X 4.02 in) |
| Horsepower | 74.0 PS (54.4 kW; 73.0 HP) at 2,600 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet discs |
| Differential lock | Rear standard |
| Transmission model | – |
| Transmission type | Synchro shuttle with dry disc clutch |
| Gears | 12 forward and 12 reverse |
| Transmission model | – |
| Transmission type | Power shuttle with wet disc clutch |
| Gears | 12 forward and 12 reverse |
| Transmission model | – |
| Transmission type | Creeper power shuttle |
| Gears | 24 forward and 24 reverse |
| Tires | |
| Front tires | Ag: 11.2-24 Industrial: 12.5/80-18 |
| Rear tires | Ag: 16.9-30 Industrial: 18.4-24/8 |
| Three-Point Hitch | |
| Category | II |
| Control type | Position and draft control |
| Lift capacity (at ends) | 1,770 kg (3,900 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540/540E rpm |
| Hydraulic system | |
| Hydraulic type | Open center gear pump |
| Valves | 1 to 3 |
| Pump flow | 19.2 gpm (72.7 lpm) |
