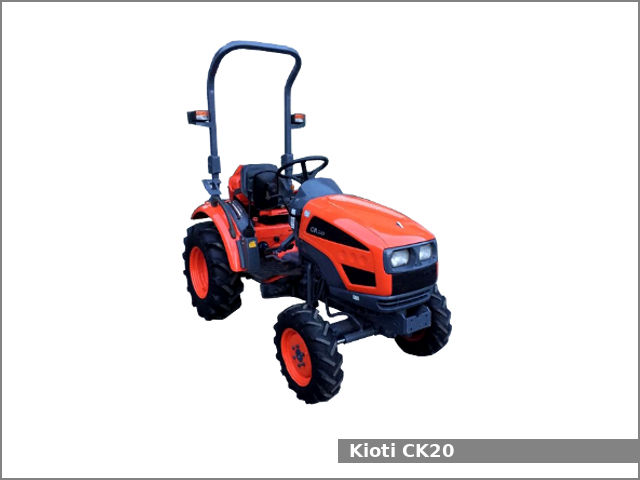

The Kioti CK20 is a 2WD compact utility tractor from the CK series. This tractor was manufactured by Daedong in Daegu, South Korea from 2003 to 2007. The Kioti CK20 is equipped with a 0.9 L (56.6 cu·in) three-cylinder diesel engine and one of two transmissions: a partially synchronized transmission (CK20) with 6 forward and 2 reverse gears or a hydrostatic transmission (CK20HST) with infinite forward and reverse gears.
The Kioti CK20 compact utility tractor used the Daedong 3C093 engine. It is a 0.9 L, 927 cm2, (56.6 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 2,800 rpm of output power.
The Kioti CK20 is equipped with power steering, wet disc brakes, open operator station with ROPS, and 20.0 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.
Following attachments are available for the Kioti CK20 compact utility tractor:
- Kioti KL120 loader
- Kioti KB2365 backhoe
Kioti CK20 Specifications
| General Specifications | |
| Model | Kioti CK20 |
| Length | 2,680 mm (105.5 in) |
| Width | 1,120 mm (44.1 in) |
| Height | 1,960 mm (77.2 in) |
| Wheel base | 1,470 mm (57.9 in) |
| Ground clearance | 300 mm (11.8 in) |
| Weight |
CK20: 890 kg (1,960 lbs) CK20HST: 905 kg (1,995 lbs) |
| Fuel tank capacity | 20.0 liters (5.3 US gal.; 4.4 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station with ROPS |
| Engine | |
| Engine model | Daedong 3C093 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 0.9 L, 927 cm2, (56.6 cu·in) |
| Bore and stroke | 75.0 mm X 70.0 mm (2.95 in X 2.76 in) |
| Horsepower | 21.4 PS (15.7 kW; 21.0 HP) at 2,800 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Partially synchronized |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 16.2 kmh (10.1 mph) Reverse: (0 mph) |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 15.0 kmh (9.3 mph) Reverse: (0 mph) |
| Tires | |
| Front tires | Ag: 6-12 |
| Rear tires | Ag: 9.5-16 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at ends) | 503 kg (1,110 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | – |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Transmission (CK20) or live (CK20HST) |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Valves | 0 or 1 |
| Total flow | 7.66 gpm (29 lpm) |
