Kubota A-175

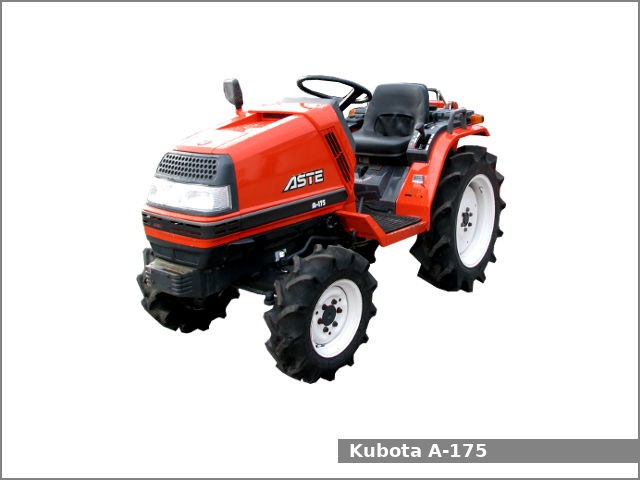

Kubota A-175The Kubota A-175 is a 4WD sub-compact utility tractor from the Aste series. This tractor was manufactured by the Kubota from 1992 to 1996. The Kubota A-175 is equipped with a 1.0 L three-cylinder diesel engine and transmission with 6 forward and 2 reverse gears.

The Kubota A-175 utility tractor used the Kubota D1005 engine. It is a 1 L, 1,001 cm2, (61.1 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 17.5 PS (12.9 kW; 17.3 HP) of maximum output power.

The Kubota A-175 is equipped with an open operator station with two-post ROPS and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Kubota A-175 Specifications

General Specifications
Model Kubota A-175
Length 2,530 mm (99.6 in)
Width 1,040 mm (40.9 in)
Height 1,820 mm (71.7 in)
Wheel base 1,350 mm (53.1 in)
Weight 684 kg (1,508 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1005
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm X 73.6 mm (2.99 in X 2.9 in)
Horsepower 17.5 PS (12.9 kW; 17.3 HP)
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type
Brakes
Transmission model
Transmission type
Gears 6 forward and 2 reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.0 (3.7 mph)
Tires
Front tires Ag: 6-12
Rear tires Ag: 8-18
Three-Point Hitch
Caterogy 0
Control type
Lift capacity
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540 rpm
