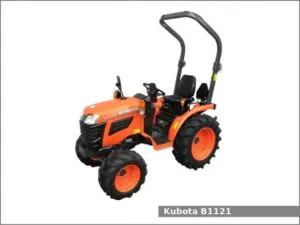

Kubota B1121

Kubota B1121The Kubota B1121 is a 4WD sub-compact utility tractor from the B1 series. The Kubota B1121 is equipped with a 0.5 L two-cylinder Kubota Z482 diesel engine and gear type transmission with 6 forward and 2 reverse gears.

The Kubota B1121 utility tractor used the Kubota Z482 engine. It is a 0.5 L, 479 cm2, (29.2 cu·in) two-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 12.0 PS (8.8 KW; 11.8 HP) of gross horsepower and 9.1 PS (6.7 KW; 9.0 HP) of PTO power.

The Kubota B1121 is equipped with manual steering, wet disc type brakes, open operator station with two-post ROPS (rollover protection structure) and 14.0 liters (3.7 US gal.; 3.1 Imp. gal) fuel tank.

Kubota B1121 Specifications

General Specifications
Model Kubota B1121
Length 2,350 mm (92.5 in)
Width 930 mm (36.6 in)
Height 2,210 mm (87 in)
Wheel base 1,270 mm (50 in)
Weight 600 kg (1,323 lbs)
Fuel tank capacity 14.0 liters (3.7 US gal.; 3.1 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota Z482
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.5 L, 479 cm2, (29.2 cu·in)
Bore and stroke 67.0 mm X 68.0 mm (2.64 in X 2.68 in)
Horsepower 12.0 PS (8.8 KW; 11.8 HP)
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Manual
Brakes Wet disc type
Differential locke Mechanical rear
Transmission model
Transmission type Gear type
Gears 6 forward and 2 reverse
Speed Forward: 14,7 kmh (8.7 mph) Reverse: (0 mph)
Tires
Front tires Ag: 5-12
Rear tires Ag: 8-16
Three-Point Hitch
Caterogy I
Control type
Lift capacity 430 kg (948 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540 rpm
