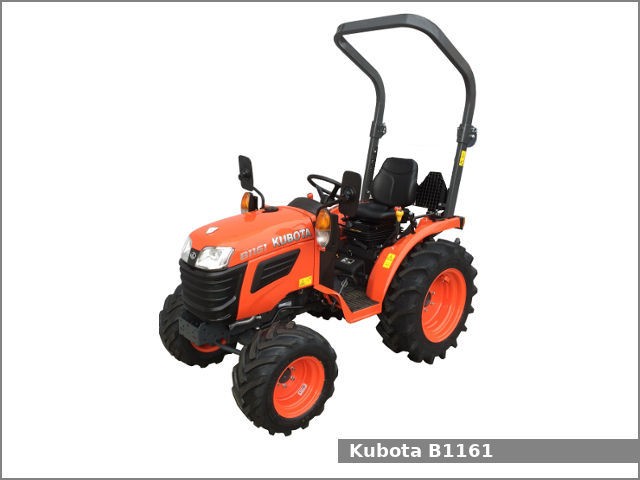

Kubota B1161

Kubota B1161The Kubota B1161 is a 4WD sub-compact utility tractor from the B1 series. The Kubota B1161 is equipped with a 0.7 L three-cylinder diesel engine and gear type transmission with 6 forward and 2 reverse gears.

The Kubota B1161 utility tractor used the Kubota D722 engine. It is a 0.7 L, 719 cm2, (43.9 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 16.0 PS (11.8 KW; 15.8 HP) at 2,900 rpm of gross horsepower and 12.4 PS (9.1 KW; 12.2 HP) of PTO power.

The Kubota B1161 is equipped with manual steering, wet disc type brakes, open operator station with two-post ROPS and 14.0 liters (3.7 US gal.; 3.1 Imp. gal) fuel tank.

Kubota B1161 Specifications

General Specifications
Model Kubota B1161
Length 2,350 mm (92.5 in)
Width 930 mm (36.6 in)
Height 2,210 mm (87 in)
Wheel base 1,270 mm (50 in)
Weight 630 kg (1,389 lbs)
Fuel tank capacity 14.0 liters (3.7 US gal.; 3.1 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D722
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.7 L, 719 cm2, (43.9 cu·in)
Bore and stroke 67.0 mm X 68.0 mm (2.64 in X 2.68 in)
Horsepower 16.0 PS (11.8 KW; 15.8 HP) at 2,900 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual
Brakes Wet disc type
Differential lock Mechanical rear
Transmission model
Transmission type Gear type
Gears 6 forward and 2 reverse
Speed Forward: 17.5 kmh (10.9 mph) Reverse: (0 mph)
Tires
Front tires Ag: 5-12
Rear tires Ag: 8-16
Three-Point Hitch
Caterogy I
Control type
Lift capacity 540 kg (1,190 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540 rpm
