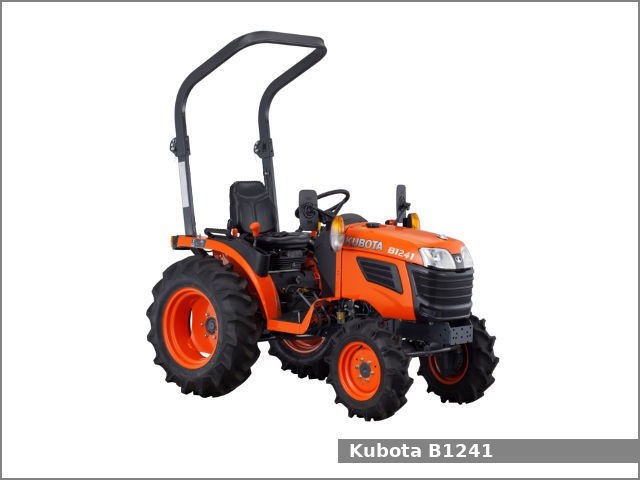

Kubota B1241

Kubota B1241The Kubota B1241 is a 2WD/4WD sub-compact utility tractor from the B1 series. The Kubota B1241 is equipped with a 1.1 L three-cylinder diesel engine and gear type transmission with 9 forward and 3 reverse gears.

The Kubota B1241 utility tractor used the Kubota D1105 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at 2,600 rpm of gross power and 19.4 PS (14.3 KW; 19.2 HP) of PTO power.

The Kubota B1241 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 26.0 liters (6.9 US gal.; 5.7 Imp. gal) fuel tank.

Kubota B1241 Specifications

General Specifications
Model Kubota B1241
Length 2,410 mm (94.9 in)
Width 990 mm (39 in)
Height 2,210 mm (87 in)
Wheel base 1,270 mm (50 in)
Weight 740 kg (1,631 lbs)
Fuel tank capacity 26.0 liters (6.9 US gal.; 5.7 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1105
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower 24.3 PS (17.9 kW; 24.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Differential lock Mechanical rear
Transmission model
Transmission type Gear type
Gears 9 forward and 3 reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: (0 mph)
Tires
Front tires Ag: 23×10.50-12
Rear tires Ag: 280/70R18
Three-Point Hitch
Caterogy I
Control type
Lift capacity 615 kg (1,356 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,600 rpm
Rear PTO type
Rear PTO spped 540 rpm
