Kubota B2601

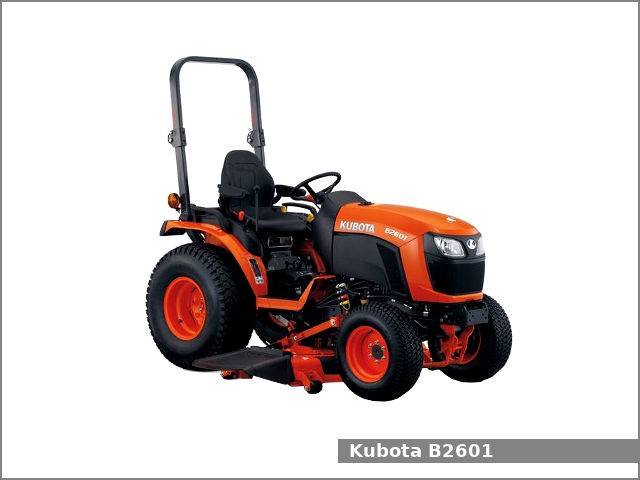

Kubota B2601The Kubota B2601 is a 4WD compact utility tractor from the B-01 series. This tractor has been manufactured by the Kubota since 2018. The Kubota B2601 is equipped with 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B2601 compact utility tractor used the Kubota D1105-E4-D32 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 25.8 PS (19.0 kW; 25.5 HP) at 2,800 rpm of gross horsepower and 19.7 PS (14.5 KW; 19.5 HP) of PTO power.

The Kubota B2601 is equipped with hydraulic type power steering, wet disc type brakes, open operator station with two-post ROPS and 23,0 liters (6.1 US gal.; 5.1 Imp. gal) fuel tank.

Following attachments are available for Kubota B2601 compact utility tractor:

  • Mid-mount Kubota RCK54-32 54 in (1,370 mm) mower deck with 3-blades
  • Mid-mount Kubota RCK60-32 60 in (1,520 mm) mower deck with 3-blades
  • Kubota LA434 loader
  • Kubota backhoe

Kubota B2601 Specifications

General Specifications
Model Kubota B2601
Length 2,410 mm (94.9 in)
Width 1,245 mm (49 in)
Height 2,160 mm (85 in)
Wheel base 1,560 mm (61.4 in)
Weight 740 kg (1631.4 lbs)
Fuel tank capacity 23,0 liters (6.1 US gal.; 5.1 Imp. gal)
Battery 12V, CCA: 430A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1105-E4-D32
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower 25.8 PS (19.0 kW; 25.5 HP) at 2,800 rpm
Torque 71.0 N·m (7.2 kg·m, 52.3 ft·lb)
Starter Electric
Oil capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity: 3.8 L (4.02 US. qt, 3.34 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydraulic type power
Brakes Wet disk type
Final drive Spur gear
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 20.4 kmh (12.7 mph) Reverse: 15.3 (9.5 mph)
Transmission oil capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Tires
Front tires Ag: 7-12
Rear tires Ag: 11.2-16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 820 kg (1808 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,500 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Pump flow 8.3 gpm (31.4 lpm)
