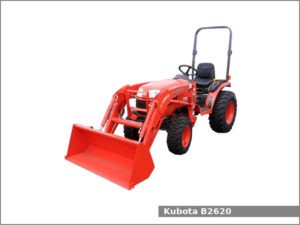

The Kubota B2620 is a 4WD compact utility tractor from the B2x20 series. This tractor was manufactured by the Kubota from 2008 to 2015. The Kubota B2620 is equipped with a 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Kubota B2620 compact utility tractor used the Kubota D1105 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 24.6 PS (18.1 kW; 24.3 HP) at 2,800 rpm of gross horsepower and 19.3 PS (14.2 KW; 19.0 HP) of PTO output power.
The Kubota B2620 is equipped with integral type power steering, wet disc type brakes, open operator station with two-post ROPS and 26.0 liters (6.9 US gal.; 5.7 Imp. gal) fuel tank.
Following attachments are available for the Kubota B2620 compact utility tractor:
- Mid-mount Kubota RCK54: 54 in (1,370 mm) mower deck with 3-blades
- Mid-mount Kubota RCK60: 60 in (1,520 mm) mower deck with 3-blades
- Kubota LA364 loader
- Kubota BH65 backhoe
Kubota B2620 Specifications
General Specifications | |
Model | Kubota B2620 |
Length | 2,415 mm (95.1 in) |
Width | 1,245 mm (49 in) |
Height | 2,160 mm (85 in) |
Wheel base | 1,563 mm (61.5 in) |
Weight | 705 kg (1,554 lbs) |
Fuel tank capacity | 26.0 liters (6.9 US gal.; 5.7 Imp. gal) |
Battery | 12V, CCA: 430A |
Cabin type | Open operator station with two-post ROPS |
Engine | |
Engine model | Kubota D1105 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 1.1 L, 1,123 cm2, (68.5 cu·in) |
Bore and stroke | 78.0 mm X 78.4 mm (3.07 in X 3.09 in) |
Horsepower | 24.6 PS (18.1 kW; 24.3 HP) at 2,800 rpm |
Torque | 71.0 N·m (7.2 kg·m, 52.3 ft·lb) |
Starter | Electric |
Oil capacity: | 3.1 L (3.28 US. qt, 2.73 Imp. qt.) |
Coolant capacity: | 3.9 L (4.12 US. qt, 3.43 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×4 MFWD 4WD |
Steering type | Integral type power |
Brakes | Wet disc type |
Differential lock | Rear standard |
Transmission model | – |
Transmission type | Hydrostatic |
Gears | Infinite (3-range) forward and reverse |
Speed | Forward: 20.2 kmh (12.6 mph) Reverse: 16.1 (10 mph) |
Transmission oil capacity | 15.0 L (4 US. gal, 3.3 Imp. gal.) |
Tires | |
Front tires | Ag: 7-12 |
Rear tires | Ag: 11.2-16 |
Three-Point Hitch | |
Caterogy | I |
Control type | Quarter inching valve |
Lift capacity (at ends) | 615 kg (1,356 lbs) |
PTO (Power take-off shaft) | |
Middle PTO type | Optional |
Middle PTO spped | 2,500 rpm |
Rear PTO type | Live |
Rear PTO spped | 540/960 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Hydraulic capacity | 15.0 L (15.85 US. qt, 13.2 Imp. qt.) |
Valves | 1 to 2 |
Pump flow | 4.7 gpm (17.8 lpm) |
Steering flow | 3.6 gpm (13.6 lpm) |
Total flow | 8.3 gpm (31.4 lpm) |
