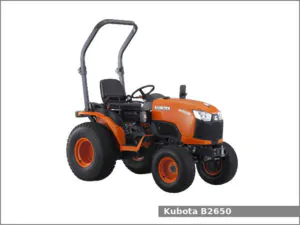

Kubota B2650

Kubota B2650The Kubota B2650 is a 4WD compact utility tractor from the B50 series. This tractor has been manufactured by the Kubota since 2013. The Kubota B2650 is equipped with a 1.3 L three-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B2650 compact utility tractor used the Kubota D1305 engine. It is a 1.3 L, 1261 cm2, (76.9 in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 88.0 mm (3.46 in) of the piston stroke. This engine produced 26.4 PS (19.4 kW; 26.0 HP) at 2,500 rpm of maximum output power.

The Kubota B2650 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS for B2650HSD version or Cab with air-conditioning for B2650HSDC version and 27.5 liters (7.3 US gal.; 6 Imp. gal) fuel tank.

Following attachments are available for Kubota B2650 compact utility tractor:

  • Mid-mount Kubota RCK60-30BA: 60 in (1,520 mm) 3-blades mower deck
  • Mid-mount Kubota RCK72-30B: 72 in (1,820 mm) 3-blades mower deck
  • Kubota LA534A loader
  • Kubota BH77 backhoe

Kubota B2650 Specifications

General Specifications
Model Kubota B2650
Length 2,570 mm (101.2 in)
Width 1,360 mm (53.5 in)
Height 2,240 mm (88.2 in)
Wheel base 1,660 mm (65.4 in)
Weight ROPS: 810 kg (1,786 lbs)
Cab: 1,040 kg (2,293 lbs)
Fuel tank capacity 27.5 liters (7.3 US gal.; 6 Imp. gal)
Battery 12V, CCA: 430A
Cabin type Open operator station with two-post ROPS. Cab with air-conditioning (option)
Engine
Engine model Kubota D1305
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,261 cm2, (76.9 cu·in)
Bore and stroke 78.0 mm X 88.0 mm (3.07 in X 3.46 in)
Horsepower 26.4 PS (19.4 kW; 26.0 HP) at 2,500 rpm
Starter Electric
Oil capacity: 4.0 L (4.23 US. qt, 3.52 Imp. qt.)
Coolant capacity: 4.3 L (4.54 US. qt, 3.78 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Final drive Spur gear
Differential lock Standard
Transmission model –
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 19.0 kmh (11.8 mph) Reverse: 14.3 (8.9 mph)
Transmission oil capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Tires
Front tires Ag: 7-12
Lawn/turf: 24×8.50-14
Industrial: 23×8.50-14
Rear tires Ag: 12.4-16
Lawn/turf: 13.6-16
Industrial: 12.4-16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 970 kg (2,139 lbs)
PTO (Power take-off shaft)
Middle PTO type –
Middle PTO spped 2,500 rpm
Rear PTO type Independent with hydraulic clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Valves 1
Pump flow 5.0 gpm (18.9 lpm)
Total flow 8.7 gpm (32.9 lpm)
Steering flow 3.7 gpm (14 lpm)
