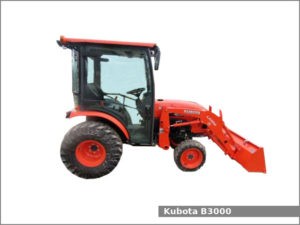

Kubota B3000

Kubota B3000HSDCThe Kubota B3000 is a 4WD compact utility tractor from the B series. This tractor was manufactured by the Kubota from 2010 to 2013. The Kubota B3000 is equipped with a 1.5 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B3000 compact utility tractor used the Kubota V1505-E3 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) four-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 30.3 PS (22.3 kW; 30.0 HP) at 2,600 rpm of gross horsepower and 23.3 PS (17.1 KW; 23.0 HP) of PTO output power.

The Kubota B3000HSDC is equipped with hydrostatic power steering, wet disc type brakes, cab standard with air-conditioning and 31.0 liters (8.2 US gal.; 6.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota B3000 compact utility tractor:

  • Kubota LA403 loader
  • Kubota BH77 backhoe

Kubota B3000 Specifications

General Specifications
Model Kubota B3000
Length 2640 mm (103.9 in)
Width 1365 mm (53.7 in)
Height 2150 mm (84.6 in)
Wheel base 1666 mm (65.6 in)
Weight 1,030 kg (2,270 lbs)
Fuel tank capacity 31.0 liters (8.2 US gal.; 6.8 Imp. gal)
Battery 12V, CCA: 430A
Cabin type Cab standard with air-conditioning
Engine model Kubota V1505-E3
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower 30.3 PS (22.3 kW; 30.0 HP) at 2,600 rpm
Torque 98.7 N·m (10.1 kg·m, 72.7 ft·lb)
Starter Electric
Oil capacity: 4.1 L (4.33 US. qt, 3.61 Imp. qt.)
Coolant capacity: 5.2 L (5.49 US. qt, 4.58 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 18.5 kmh (11.5 mph) Reverse: 15.5 (9.6 mph)
Transmission oil capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)
Front tires Ag: 7-12
Rear tires Ag: 12.4-16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 970 kg (2,139 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 2,500 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Pump flow 5.2 gpm (19.7 lpm)
Steering flow 3.9 gpm (14.8 lpm)
Total flow 9.1 gpm (34.4 lpm)
