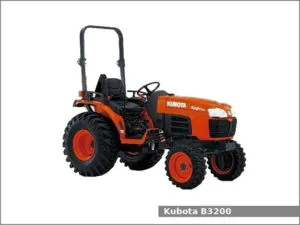

The Kubota B3200 is a 4WD compact utility tractor from the B series. This tractor was manufactured by the Kubota from 2008 to 2015. The Kubota B3200 is equipped with a 1.5 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Kubota B3200 compact utility tractor used the Kubota V1505 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) four-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 32.5 PS (23.9 kW; 32.0 HP) at 2,700 rpm of maximum output power.
The Kubota B3200 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS and 31.0 liters (8.2 US gal.; 6.8 Imp. gal) fuel tank.
Following attachments are available for Kubota B3200 compact utility tractor:
- Mid-mount Kubota RCK60: 60 in (1,520 mm) 3-blades mower deck
- Mid-mount Kubota RCK72: 72 in (1,820 mm) 3-blades mower deck
- Kubota LA504 loader
- Kubota BH76 backhoe
Kubota B3200 Specifications
| General Specifications | |
| Model | Kubota B3200 |
| Length | 2,510 mm (98.8 in) |
| Width | 1,360 mm (53.5 in) |
| Height | – |
| Wheel base | 1,660 mm (65.4 in) |
| Weight | 800 kg (1764 lbs) |
| Fuel tank capacity | 31.0 liters (8.2 US gal.; 6.8 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station with two-post ROPS |
| Engine | |
| Engine model | Kubota V1505 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 1.5 L, 1,498 cm2, (91.4 cu·in) |
| Bore and stroke | 78.0 mm X 78.0 mm (3.07 in X 3.07 in) |
| Horsepower | 32.5 PS (23.9 kW; 32 HP) at 2,700 rpm |
| Starter | Electric |
| Oil capacity: | 5.4 L (5.71 US. qt, 4.75 Imp. qt.) |
| Coolant capacity: | 4.4 L (4.65 US. qt, 3.87 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc type |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 20.0 kmh (12.4 mph) Reverse: 15.9 (9.9 mph) |
| Transmission oil capacity | 16.0 L (16.91 US. qt, 14.08 Imp. qt.) |
| Tires | |
| Front tires | Ag: 7-12 |
| Rear tires | Ag: 12.4-16 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity | 750 kg (1,654 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | – |
| Middle PTO spped | 2,500 rpm |
| Rear PTO type | Live |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Valves | 0 to 2 |
| Pump flow | 6.7 gpm (25.4 lpm) |
| Total flow | 9.9 gpm (37.5 lpm) |
| Steering flow | 3.2 gpm (12.1 lpm) |
