Kubota B3300SU

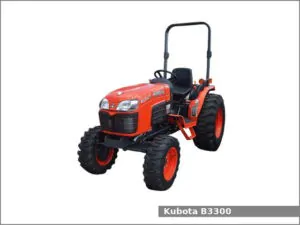

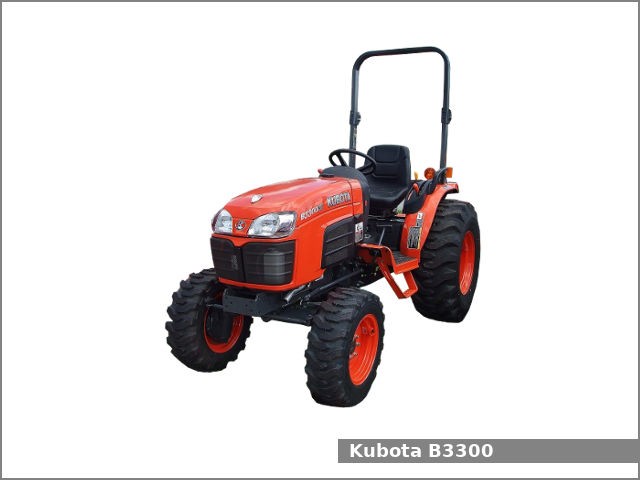

Kubota B3300SUThe Kubota B3300SU is a 4WD compact utility tractor from the B series. This tractor has been manufactured by the Kubota since 2010. The Kubota B3300SU is equipped with a 1.5 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B3300SU compact utility tractor used the Kubota V1505 engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) four-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 33.5 PS (24.6 kW; 33.0 HP) at 2,700 rpm of gross horsepower and 25.3 PS (18.6 KW; 24.9 HP) of PTO output power.

The Kubota B3300SU is equipped with integral type power steering, wet disc type brakes, open operator station with two-post ROPS and 31.0 liters (8.2 US gal.; 6.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota B3300SU compact utility tractor:

  • Kubota LA504 loader
  • Kubota BH76 backhoe

Kubota B3300SU Specifications

General Specifications
ModelKubota B3300SU
Length2,520 mm (99.2 in)
Width1,365 mm (53.7 in)
Height2,245 mm (88.4 in)
Wheel base1,696 mm (66.8 in)
Weight800 kg (1764 lbs)
Fuel tank capacity31.0 liters (8.2 US gal.; 6.8 Imp. gal)
Battery12V, CCA: 433A
Cabin typeOpen operator station with two-post ROPS
Engine modelKubota V1505
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower33.5 PS (24.6 kW; 33.0 HP) at 2,700 rpm
Torque91.0 N·m (9.3 kg·m, 67.1 ft·lb)
Oil capacity:5.4 L (5.71 US. qt, 4.75 Imp. qt.)
Coolant capacity:4.5 L (4.76 US. qt, 3.96 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeIntegral type power
BrakesWet disc type
Differential lockRear standard
Transmission model
Transmission typeHydrostatic
GearsInfinite (3-range) forward and reverse
Speed Forward: 19.1 kmh (11.9 mph) Reverse: 15.3 (9.5 mph)
Transmission oil capacity14.5 L (3.8 US. gal, 3.2 Imp. gal.)
Front tires Ag: 7-12
Industrial: 25×8.5-14
Rear tires Ag: 12.4-16
Industrial: 15-19.5
Three-Point Hitch
Control typeQuarter inching valve
Lift capacity (at ends)810 kg (1,786 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity14.5 L (15.32 US. qt, 12.76 Imp. qt.)
Valves0 or 1
Pump flow6.7 gpm (25.4 lpm)
Steering flow3.2 gpm (12.1 lpm)
Total flow9.9 gpm (37.5 lpm)
