Kubota B3350

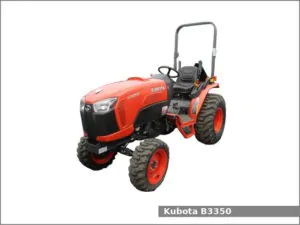

Kubota B3350The Kubota B3350 is a 4WD compact utility tractor from the B50 series. This tractor has been manufactured by the Kubota since 2013. The Kubota B3350 is equipped with a 1.5 L four-cylinder turbocharged diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota B3350 compact utility tractor used the Kubota V1505-T engine. It is a 1.5 L, 1,498 cm2, (91.4 cu·in) four-cylinder turbocharged diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 31.3 PS (23.0 kW; 30.8 HP) at 2,500 rpm of gross horsepower and 27.3 PS (20.1 KW; 27.0 HP) of PTO output power.

The Kubota B3350 is equipped with hydrostatic type power steering, wet disc type brakes, open operator station with two-post ROPS (B3350HSD version) or Cab (B3350HSDC version) and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank. The B3350SU Special Utility was a low-cost version of the B3350 without mid-PTO and hydraulics position control.

Following attachments are available for the Kubota B3350 compact utility tractor:

  • Mid-mount Kubota RCK60-30BA: 60 in (1,520 mm) 3-blades mower deck
  • Mid-mount Kubota RCK72-30B: 72 in (1,820 mm) 3-blades mower deck
  • Kubota LA534A loader
  • Kubota BH77 backhoe

Kubota B3350 Specifications

General Specifications
Model Kubota B3350
Length 2,570 mm (101.2 in)
Width 1,365 mm (53.7 in)
Height B3350HSD with ROPS: 2,245 mm (88.4 in)
B3350HSDC with Cab: 2,140 mm (84.6 in)
Wheel base 1,666 mm (65.6 in)
Weight B3350HSD with ROPS: 860 kg (1,896 lbs)
B3350HSDC with Cab: 1,110 kg (2,447 lbs)
Fuel tank capacity 27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery 12V, CCA: 430A
Cabin type Open operator station with two-post ROPS or Cab (option)
Engine
Engine model Kubota V1505-T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 1.5 L, 1,498 cm2, (91.4 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower 31.3 PS (23.0 kW; 30.8 HP) at 2,500 rpm
Torque 105.4 N·m (10.7 kg·m, 77.7 ft·lb)
Starter Electric
Oil capacity: 4.8 L (5.07 US. qt, 4.22 Imp. qt.)
Coolant capacity: 4.3 L (4.54 US. qt, 3.78 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic type power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 21.9 kmh (13.6 mph) Reverse: 16.5 (10.3 mph)
Transmission oil capacity 15.0 L (4 US. gal, 3.3 Imp. gal.)
Tires
Front tires Ag: 7-12
Rear tires Ag: 12.4-16
Three-Point Hitch
Caterogy I
Control type B3350: Position control
B3350SU: Quarter inching valve
Lift capacity (at ends) 970 kg (2,139 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 2,500 rpm
Rear PTO type Independent with hydraulic clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Valves 1
Pump flow 5.0 gpm (18.9 lpm)
Steering flow 3.7 gpm (14 lpm)
Total flow 8.7 gpm (32.9 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
