Kubota B40

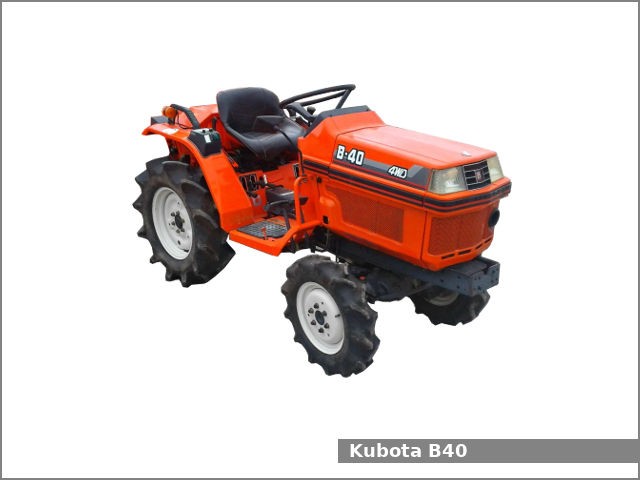

Kubota B40The Kubota B40 is a 4WD sub-compact utility tractor from the B series. This tractor was manufactured by the Kubota from 1988 to 1992. The Kubota B40 is equipped with a 0.9 L three-cylinder diesel engine and gear type transmission with 6 forward and 2 reverse gears.

The Kubota B40 utility tractor used the Kubota D850 engine. It is a 0.9 L, 855 cm2, (52.2 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 13.9 HP) at 2,600 rpm of maximum output power.

The Kubota B40 is equipped with an open operator station with two-post ROPS and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Kubota B40 Specifications

General Specifications
Model Kubota B40
Length 2,150 mm (84.6 in)
Width 1,050 mm (41.3 in)
Height 1,240 mm (48.8 in)
Wheel base 1,240 mm (48.8 in)
Weight 550 kg (1213 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D850
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 855 cm2, (52.2 cu·in)
Bore and stroke 72.0 mm X 70.0 mm (2.83 in X 2.76 in)
Horsepower 14.1 PS (10.4 kW; 13.9 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type
Brakes
Transmission model
Transmission type Gear type
Gears 6 forward and 2 reverse
Speed Forward: 12.6 kmh (7.8 mph) Reverse: 7.1 (4.4 mph)
Tires
Front tires Ag: 5.00-12
Rear tires Ag: 8-16
Three-Point Hitch
Caterogy 0
Control type
Lift capacity
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540 rpm
