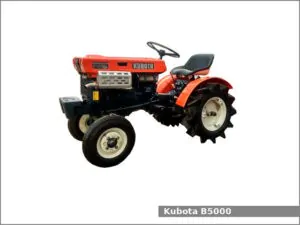

Kubota B5000

Kubota B5000The Kubota B5000 is a 2WD (B5000E) or 4WD (B5000dt) sub-compact utility tractor from the B series. This tractor was manufactured by the Kubota from 1973 to 1977. The Kubota B5000 is equipped with a 0.5 L two-cylinder diesel engine and unsynchronized gear transmission with 6 forward and 2 reverse gears.

The Kubota B5000 sub-compact utility tractor used the Kubota Z500 engine. It is a 0.5 L, 508 cm2, (31.0 cu·in) two-cylinder naturally aspirated diesel engine with 68.0 mm (2.68 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 9.1 PS (6.7 kW; 9 HP) at 3,000 rpm of maximum output power.

The Kubota B5000 is equipped with manual steering, wet disc type brakes, open operator station.
.

Kubota B5000 Specifications

General Specifications
Model Kubota B5000
Length 1,900 mm (74.8 in)
Width 1,040 mm (40.9 in)
Height 1,110 mm (43.7 in)
Wheel base 1,160 mm (45.7 in)
Weight 410 kg (904 lbs)
Fuel tank capacity
Battery
Cabin type Open operator station
Engine
Engine model Kubota Z500
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.5 L, 508 cm2, (31.0 cu·in)
Bore and stroke 68.0 mm X 70.0 mm (2.68 in X 2.76 in)
Horsepower 9.1 PS (6.7 kW; 9.0 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis B5000E: 4×2 2WD
B5000DT: 4×4 MFWD 4WD
Steering type Manual
Brakes Wet disc type
Transmission model
Transmission type Unsynchronized gear
Gears 6 forward and 2 reverse
Tires
Front tires Ag: 4.00-10
Rear tires Ag: 7-14
Three-Point Hitch
Caterogy I
Control type
Lift capacity
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540/860/1,000 rpm
