Kubota B5200

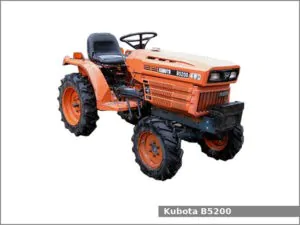

Kubota B5200The Kubota B5200 is a 2WD (B5200E) ot 4WD (B5200D) utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1983 to 1996. The Kubota B5200 is equipped with 0.8 L three-cylinders diesel engine and gear shift transmission with dry single-plate clutch (6 forward and 2 reverse gears).

The Kubota B5200 utility tractor used the Kubota D750-LA diesel engine. It is a 0.8 L, 762 cm2, (46.5 cu·in) vertical, water-cooled, three-cylinder diesel engine with 68.0 mm (2.68 in) of cylinder bore and 70.0 mm (2.76 in) of piston stroke. The compression ratio rating is 22.0:1. The Kubota D750 engine has a spherical type combustion chamber, centrifugal ball mechanical governor, Bosch K-type mini fuel injection pump (NP-PFR3KD50/2NP4) and throttle type injection nozzle (ND-DN12SD12). The engine used forced lubricating by a rotor-type pump and forced circulation cooling system with a water pump and radiator.

This engine produced 13.2 PS (9.7 kW; 13.0 HP) of gross horsepower and 11.7 PS (8.6 KW; 11.5 HP) of maximum PTO power. The Kubota B5200 is equipped with manual (ball screw type) steering, dry internal expanding type brakes (right and left independent with interlocking device), open operator station with two-post ROPS (rollover protection structure) and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the Kubota B5200 tractor:

  • Kubota B3538: 46 in (1,160 mm) rear finish mower
  • Kubota FL850: 33.5 in (850 mm) tiller
  • Kubota B340: 48 in (1,220 mm) disc harrow
  • Single-bottom 12 in (305 mm) plow
  • Kubota B2551: front-mount 51 in (1,290 mm) dual-stage snowblower with a hydraulic lift
  • Kubota B1630C loader
  • Kubota B1640 loader
  • Kubota B1640A loader

Kubota B5200 Specifications

General Specifications
Model Kubota B5200
Length 2,540 mm (100 in)
Width 1,080 mm (42.5 in)
Height 1,795 mm (70.7 in)
Wheel base 1,400 mm (55.1 in)
Weight 480 kg (1058.2 lbs)
Fuel tank capacity 15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V 45A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D750-LA
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.8 L, 762 cm2, (46.5 cu·in)
Bore and stroke 68.0 mm X 70.0 mm (2.68 in X 2.76 in)
Compression ratio 22.0:1
Injection order 1-2-3
Injection timing 20-22° B.T.D.C.
Injection pressure 13.7-14.7 MPa (140-50 kgf/cm2, 1,990-2,130 psi)
Horsepower 13.2 PS (9.7 kW; 13 HP)
Torque 42.2 N·m (4.3 kg·m, 31.1 ft·lb) at 1,800 rpm
Starter Electric
Oil type API: CC
Oil capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity: 2.8 L (2.96 US. qt, 2.46 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual (ball screw type)
Brakes Dry internal expanding type
Steering gear box 0.2 L (0.2 US.qt., 0.18 Imp.qt.)
Front axle case (4WD) 0.5 L ( 0.5 US.qt., 0.44 Imp.qt.)
Front axle gear case (4WD) 0.15 L (0.16 US.qt., 0.13 Imp.qt.)
Transmission model
Transmission type Gear shift with dry single plate clutch
Gears 6 forward and 2 reverse
Speed Forward: 12.0 kmh (7.5 mph) Reverse: 6.0 (3.7 mph)
Transmission oil capacity 12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Tires
Front tires Ag: 4.50-10 (2WD); 5-12 (4WD)
Lawn/turf: 18×9.50-8 (2WD); 20.5×8.00-10 (4WD)
Rear tires Ag: 7-16;
Lawn/turf: 29×12.00-15
Three-Point Hitch
Caterogy I
Control type
Lift capacity 470 kg (1,040 lbs)
PTO (Power take-off shaft)
Front PTO type Engine
Front PTO spped 2,500 rpm
Rear PTO type Transmission
Rear PTO spped 540 and 82 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 12.1 L (12.79 US. qt, 10.65 Imp. qt.)
Pressure 1630 psi (112.4 bar)
Total flow 4.0 gpm (15.1 lpm)
