Kubota B6000

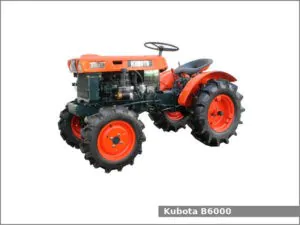

Kubota B6000The Kubota B6000 is a 2WD (B6000E) or 4WD (B6000D) sub-compact utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1973 to 1977. The Kubota B6000 is equipped with a 0.6 L two-cylinder diesel engine and unsynchronized gear type transmission with 6 forward and 2 reverse gears.

The Kubota B6000 sub-compact utility tractor used the Kubota ZL600 engine. It is a 0.6 L, 577 cm2, (35.2 cu·in) two-cylinder natural aspirated diesel engine with 70.0 mm (2.76 in) of the cylinder bore and 75.0 mm (2.95 in) of the piston stroke. This engine produced 11 PS (8.1 kW; 10.9 HP) at 2,700 rpm of maximum output power.

The Kubota B6000 is equipped with manual steering, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Kubota B6000 Specifications

General Specifications
Model Kubota B6000
Length 1,790 mm (70.5 in)
Width 920 mm (36.2 in)
Height 1,100 mm (43.3 in)
Wheel base 1,160 mm (45.7 in)
Weight 385 kg (849 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V 65Ah
Cabin type Open operator station
Engine
Engine model Kubota ZL600
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.6 L, 577 cm2, (35.2 cu·in)
Bore and stroke 70.0 mm X 75.0 mm (2.76 in X 2.95 in)
Horsepower 11 PS (8.1 kW; 10.9 HP) at 2,700 rpm
Starter Electric
Oil capacity: 2.0 L (2.1 US. qt, 1.8 Imp. qt.)
Coolant capacity: 3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Transmission and chassis
Chassis B6000E: 4×2 2WD
B6000D: 4×4 MFWD 4WD
Steering type Manual
Brakes
Transmission model
Transmission type Unsynchronized gear
Gears 6 forward and 2 reverse
Speed Forward: 11.9 kmh (7.4 mph) Reverse: 6.4 (4 mph)
Tires
Front tires Ag: 5-12
Rear tires Ag: 7-14
Three-Point Hitch
Caterogy I
Control type
Lift capacity
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 565/842/1,346 rpm
