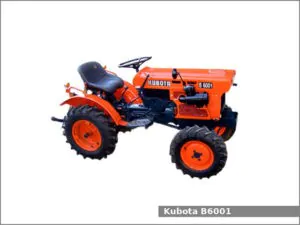

Kubota B6001

Kubota B6001The Kubota B6001 is a 2WD (B6001E) or 4WD (B6001DT) sub-compact utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1976 to 1984. The Kubota B6001 is equipped with a 0.7 L two-cylinder diesel engine and unsynchronized gear transmission with 6 forward and 2 reverse gears.

The Kubota B6001 sub-compact utility tractor used the Kubota D650 engine. It is a 0.7 L, 675 cm2, (41.2 cu·in) two-cylinder natural aspirated diesel engine with 64.0 mm (2.52 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 114.0 HP) at 3,000 rpm of maximum output power.

The Kubota B6001 is equipped with manual steering, open operator station and 9.0 liters (2.4 US gal.; 2 Imp. gal) fuel tank.

Kubota B6001 Specifications

General Specifications
Model Kubota B6001
Length 1,990 mm (78.3 in)
Width 890 mm (35 in)
Height 1,090 mm (42.9 in)
Wheel base 1,160 mm (45.7 in)
Weight 476 kg (1049.4 lbs)
Fuel tank capacity 9.0 liters (2.4 US gal.; 2 Imp. gal)
Battery 12V 65Ah
Cabin type Open operator station
Engine
Engine model Kubota D650
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.7 L, 675 cm2, (41.2 cu·in)
Bore and stroke 64.0 mm X 70.0 mm (2.52 in X 2.76 in)
Horsepower 14.1 PS (10.4 kW; 14.0 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual
Brakes
Transmission model
Transmission type Unsynchronized gear
Gears 6 forward and 2 reverse
Tires
Front tires Ag: 5.00-12
Rear tires Ag: 7-14, 8-16
Three-Point Hitch
Caterogy I
Control type
Lift capacity
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 565/842/1,000 rpm
