Kubota B6200

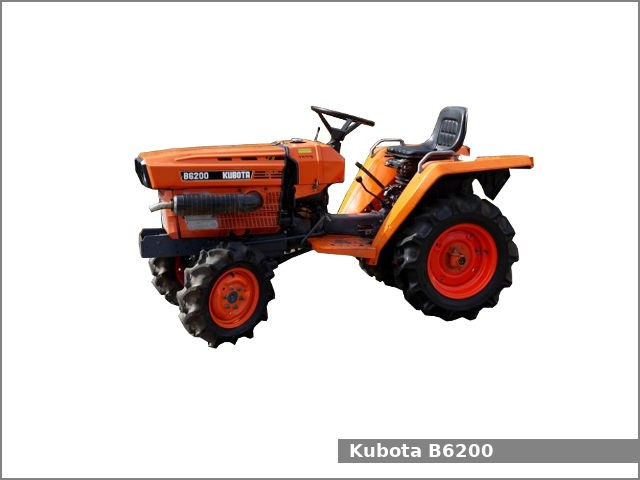

Kubota B6200The Kubota B6200 is a 2WD (B6200E) or 4WD (B6200D) compact utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1983 to 1992. The Kubota B6200 is equipped with 0.9 L three-cylinder diesel engine and gear shift transmission with dry single plate clutch (6 forward and 2 reverse gears).

The Kubota B6200 utility tractor used the Kubota D850 engine. It is a 0.9 L, 855 cm2, (52.2 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. The compression ratio rating is 22.0:1. The Kubota D850 engine has a spherical type combustion chamber, centrifugal ball mechanical governor, Bosch K-type mini fuel injection pump (NP-PFR3KD50/2NP4) and throttle type injection nozzle (ND-DN12SD12). The engine used forced lubricating by a rotor-type pump and forced circulation cooling system with a water pump and radiator. This engine produced 15.2 PS (11.2 kW; 15 HP) of gross output power and 12.6 PS (9.3 KW; 12.5 HP) of maximum PTO horsepower.

The Kubota B6200 is equipped with manual, ball screw type steering; internal expanding type brakes (right and left independent with interlocking device), open operator station and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for Kubota B6200 utility tractor:

  • Kubota RC-60-72: front-mount 60 in (1,520 mm) 3-blades mower deck
  • Kubota B3538: 48 in (1,220 mm) rear-mount finish mower
  • Kubota FL850: 33.5 in (850 mm) tiller
  • Kubota B422: 42 in (1,070 mm) tiller
  • Kubota FL1000: 39 in (990 mm) tiller
  • Kubota B340: 48 in (1,220 mm) disc harrow
  • Kubota B380: single-bottom 14 in (305 mm) moldboard plow
  • Kubota B2551: front/rear-mount 51 in (1,290 mm) dual-stage snowblower with a hydraulic lift
  • Kubota B1630C loader
  • Kubota B1640 loader
  • Kubota B1640A loader

Kubota B6200 Specifications

General Specifications
Model Kubota B6200
Length 2,540 mm (100 in)
Width 1,140 mm (44.9 in)
Height 1,800 mm (70.9 in)
Wheel base 1,400 mm (55.1 in)
Weight 490 kg (1,080 lbs)
Fuel tank capacity 15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V 45Ah
Cabin type Open operator station
Engine
Engine model Kubota D850-LA-1
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 855 cm2, (52.2 cu·in)
Bore and stroke 72.0 mm X 70.0 mm (2.83 in X 2.76 in)
Compression ratio 22.0:1
Injection order 1-2-3
Injection timing 20-22° B.T.D.C.
Injection pressure 13.7-14.7 MPa (140-50 kgf/cm2, 1,990-2,130 psi)
Horsepower 15.2 PS (11.2 kW; 15.0 HP)
Torque 49.1 N·m (5 kg·m, 36.2 ft·lb) at 1,800 rpm
Starter Electric
Oil type: API:CC
Oil capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity: 2.8 L (2.96 US. qt, 2.46 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual, ball screw type
Brakes Internal expanding type. Right and left independent with interlocking device
Transmission model
Transmission type Gear shift type with dry single plate clutch
Gears 6 forward and 2 reverse
Speed Forward: 12.8 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Steering gear box 0.2 L (0.2 US.qt., 0.18 Imp.qt.)
Front axle case (4WD) 0.5 L ( 0.5 US.qt., 0.44 Imp.qt.)
Front axle gear case (4WD) 0.15 L (0.16 US.qt., 0.13 Imp.qt.)
Tires
Front tires Ag: 4.50-10, 5.00-10 (2WD); 5-12, 6-12B (4WD)
Lawn/turf: 18×9.50-8 (2WD); 20.5×8.00-10 (4WD)
Rear tires Ag: 7-16, 8-16 (2WD); 7-16, 8-16 (4WD)
Lawn/turf: 29×12.00-15 (2WD/4WD)
Three-Point Hitch
Caterogy I
Control type
Lift capacity 470 kg (1,040 lbs)
PTO (Power take-off shaft)
Front PTO type
Front PTO spped 2,500 rpm
Rear PTO type
Rear PTO spped 540/825 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Pressure 1,630 psi (112.4 bar)
Total flow 4.0 gpm (15.1 lpm)
