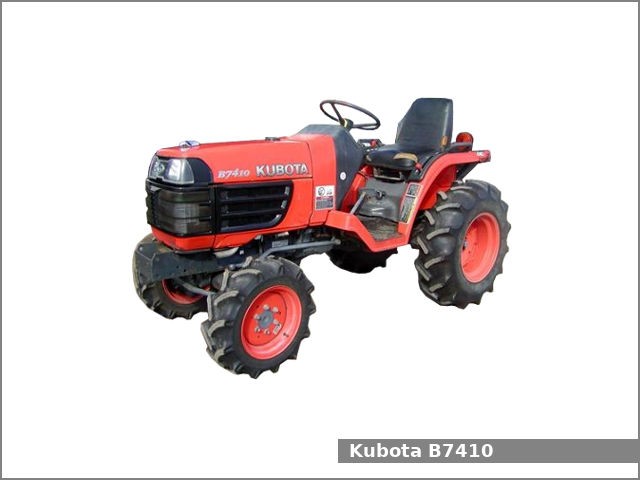

Kubota B7410

Kubota B7410The Kubota B7410 is a 4WD compact utility tractor from the B7x10 series. This tractor was manufactured by the Kubota from 2004 to 2007. The Kubota B7410 is equipped with a 0.8 L three-cylinder diesel engine and gear type transmission with dry disc clutch and 6 forward and 2 reverse gears.

The Kubota B7410 compact utility tractor used the Kubota D782-E2-D20 engine. It is a 0.8 L, 778 cm2, (47.5 cu·in) three-cylinder natural aspirated diesel engine with 67.0 mm (2.64 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 2,900 rpm of maximum output power.

The Kubota B7410 is equipped with manual steering, wet disc type brakes, open operator station with two-post ROPS and 14.0 liters (3.7 US gal.; 3.1 Imp. gal) fuel tank.

Kubota B7410 Specifications

General Specifications
ModelKubota B7410
Length2,300 mm (90.6 in)
Width1,070 mm (42.1 in)
Height1,940 mm (76.4 in)
Wheel base1,500 mm (59.1 in)
Weight600 kg (1,323 lbs)
Fuel tank capacity14.0 liters (3.7 US gal.; 3.1 Imp. gal)
Battery12V, CCA: 433A
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelKubota D782-E2-D20
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement0.8 L, 778 cm2, (47.5 cu·in)
Bore and stroke67.0 mm X 73.6 mm (2.64 in X 2.9 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP) at 2,900 rpm
Torque46.1 N·m (4.7 kg·m, 34 ft·lb)
StarterElectric
Oil capacity:2.4 L (2.54 US. qt, 2.11 Imp. qt.)
Coolant capacity:2.7 L (2.85 US. qt, 2.38 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeManual
BrakesWet disc type
Transmission model
Transmission typeGear type with dry disc clutch
Gears6 forward and 2 reverse
Transmission oil capacity12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Tires
Front tiresAg: 6-12
Rear tiresAg: 9.5-16
Three-Point Hitch
CaterogyI
Control typeQuarter inching valve
Lift capacity615 kg (1,356 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped2,500 rpm
Rear PTO typeTransmission
Rear PTO spped540/960 rpm
Hydraulic system
Hydraulic typeOpen center
Valves1
Total flow3.9 gpm (14.8 lpm)
