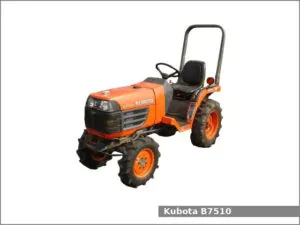

Kubota B7510

Kubota B7510The Kubota B7510 is a 4WD compact utility tractor from the B7x10 series. This tractor was manufactured by the Kubota from 2004 to 2007. The Kubota B7510 is equipped with 1.0 L three-cylinder diesel engine and one of two transmissions: gear shift transmission with dry disc clutch transmission and 6 forward and 2 reverse gears for 7510DT version or hydrostatic transmission with infinite (2-range) forward and reverse gears for B7510 HSD version. This tractor was available in narrow vesion – B7510DTN.

The Kubota B7510 compact utility tractor used the Kubota D1005-E2-D16 engine. It is a 1.0 L, 1,001 cm2, (61., cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm of maximum output power.

The Kubota B7510 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS and 20.0 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Kubota B7510 Specifications

General Specifications
Model Kubota B7510
Length B7510: 2,300 mm (90.6 in)
B7510DTN: 2,270 mm (89.6 in)
Width B7510: 1,070 mm (42.1 in)
B7510DTN: 890 mm (35.3 in)
Height B7510: 1,940 mm (76.4 in)
B7510DTN: 1,910 mm (75.2 in)
Wheel base 1,500 mm (59.1 in)
Weight B7510: 600 kg (1,323 lbs)
B7510DTN: 620 kg (1,367 lbs)
Fuel tank capacity 20.0 liters (5.3 US gal.; 4.4 Imp. gal)
Battery 12V, CCA: 433A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1005-E2-D16
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm X 73.6 mm (2.99 in X 2.9 in)
Horsepower 21.4 PS (15.7 kW; 21.0 HP) at 2,600 rpm
Torque 59.7 N·m (6.1 kg·m, 44 ft·lb)
Starter Electric
Oil capacity: 3.0 L (3.17 US. qt, 2.64 Imp. qt.)
Coolant capacity: 3.8 L (4.02 US. qt, 3.34 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Transmission model
Transmission type Gear type with dry disc clutch
Gears 6 forward and 2 reverse
Transmission oil capacity 13.5 L (14.27 US. qt, 11.88 Imp. qt.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Transmission oil capacity 15.3 L (16.17 US. qt, 13.46 Imp. qt.)
Tires
Front tires Ag: 6-12, DTN: 5-12
Rear tires Ag: 9.5-16, DTN: 8-16
Three-Point Hitch
Caterogy I
Control type Quarter inching valve or position control (7510DTN)
Lift capacity B7510: 615 kg (1,356 lbs)
B7510DTN: 750 kg (1,655 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 2,500 rpm
Rear PTO type Transmission or independent (hydro)
Rear PTO spped 540/960 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 or 2 (DTN)
Pump flow 4.4 gpm (16.7 lpm)
Total flow 7.0 gpm (26.5 lpm)
Steering flow 2.6 gpm (9.8 lpm)
