Kubota B7610

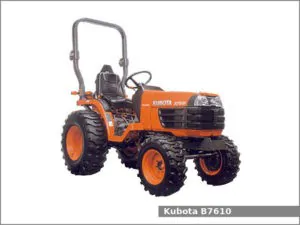

Kubota B7610The Kubota B7610 is a 4WD compact utility tractor from the B7x10 series. This tractor was manufactured by the Kubota from 2004 to 2007. The Kubota B7610 is equipped with a 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota B7610 utility tractor used the Kubota D1105-E-D16 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.4 mm (3.09 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of maximum output power and 67.8 N·m (6.9 kg·m, 50 ft·lb) of peak torque.

The Kubota B7610 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS (rollover protection structure) and 20.0 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Kubota B7610 Specifications

General Specifications
Model Kubota B7610
Length 2,320 mm (91.3 in)
Width 1,170 mm (46.1 in)
Height 1,960 mm (77.2 in)
Wheel base 1,500 mm (59.1 in)
Weight 620 kg (1,367 lbs)
Fuel tank capacity 20.0 liters (5.3 US gal.; 4.4 Imp. gal)
Battery 12V, CCA: 433A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1105-E-D16
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke 78.0 mm X 78.4 mm (3.07 in X 3.09 in)
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Torque 67.8 N·m (6.9 kg·m, 50 ft·lb)
Starter Electric
Oil capacity: 3.0 L (3.17 US. qt, 2.64 Imp. qt.)
Coolant capacity: 3.8 L (4.02 US. qt, 3.34 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 5.8 kmh (3.6 mph) Reverse: 14.7 (9.1 mph)
Transmission oil capacity 15.0 L (15.85 US. qt, 13.2 Imp. qt.)
Tires
Front tires Ag: 7-12
Rear tires Ag: 11.2-16
Three-Point Hitch
Caterogy I
Control type Quarter inching valve
Lift capacity 615 kg (1,356 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 2,500 rpm
Rear PTO type Independent
Rear PTO spped 540/960 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Pump flow 4.4 gpm (16.7 lpm)
Total flow 7.0 gpm (26.5 lpm)
Steering flow 2.6 gpm (9.8 lpm)
