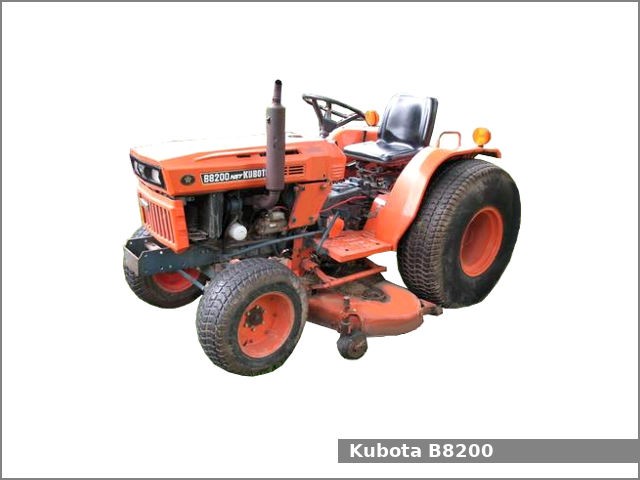

Kubota B8200

Kubota B8200The Kubota B8200 is a 2WD (B8200F/E/HSTE) or 4WD (B8200D/DT/HSTD) compact utility tractor from the B series. This tractor was manufactured by the Kubota in Japan from 1983 to 1990. The Kubota B8200 is equipped with a 0.9 L three-cylinder diesel engine and one of two transmissions: gear type transmission (HST) with 9 forward and 3 reverse gears or hydrostatic transmission with Infinite (3-range) forward and reverse gears.

The Kubota B8200 compact utility tractor used the Kubota D950-A-DT engine. It is a 0.9 L, 927 cm2, (56.6 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 19.3 PS (14.2 kW; 19.0 HP) at 2,600 rpm of maximum output power.

The Kubota B8200 is equipped with manual or power (option) steering, dry internal expanding brakes, open operator station with two-post ROPS and 20.0 liters (5.3 US gal.; 4.4 Imp. gal) fuel tank.

Following attachments are available for Kubota B8200 compact utility tractor:

  • Kubota RCB-60-1: 60 in (1,520 mm) 3-blades mower deck for gear type version
  • Kubota RC-82H: 60 in (1,520 mm) 3-blades mower deck for HST version
  • Kubota B/L 2563 51 in (1,290 in) dual-stage snow blower with hydraulic lift
  • Kubota L322 60 in (1,520 mm) snow blower
  • Kubota BF300 loader
  • Kubota BK4520 backhoe

Kubota B8200 Specifications

General Specifications
Model Kubota B8200
Length 2,710 mm (106.7 in)
Width 1,400 mm (55.1 in)
Height 2,020 mm (79.5 in)
Wheel base 1,530 mm (60.2 in)
Weight 2WD: 645 kg (1,422 lbs)
4WD: 710 kg (1,565 lbs)
Fuel tank capacity 20.0 liters (5.3 US gal.; 4.4 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine model Kubota D950-A-DT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 927 cm2, (56.6 cu·in)
Bore and stroke 75.0 mm X 70.0 mm (2.95 in X 2.76 in)
Horsepower 19.3 PS (14.2 kW; 19 HP) at 2,600 rpm
Starter Electric
Oil capacity: 3.9 L (4.12 US. qt, 3.43 Imp. qt.)
Coolant capacity: 4.0 L (4.23 US. qt, 3.52 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual or power (option)
Brakes Dry internal expanding
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: 15.1 (9.4 mph)
Transmission oil capacity 18.0 L (19.02 US. qt, 15.84 Imp. qt.)
Transmission model
Transmission type Gear type with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 19.4 kmh (12.1 mph) Reverse: 9.7 (6 mph)
Transmission oil capacity 18.0 L (19.02 US. qt, 15.84 Imp. qt.)
Front tires Ag: 4.00-12 (2WD), 6-12 (4WD)
Lawn/turf: 24×8.5-12
Rear tires Ag: 8.3-24 (2WD), 12.4-16 (4WD)
Lawn/turf: 13.6-16
Three-Point Hitch
Caterogy I
Control type
Lift capacity 580 kg (1,280 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 1,745/2,416 rpm
Rear PTO type
Rear PTO spped 540/748 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 18.0 L (19.02 US. qt, 15.84 Imp. qt.)
Pressure 1,715 psi (118 bar)
