Kubota BX2200

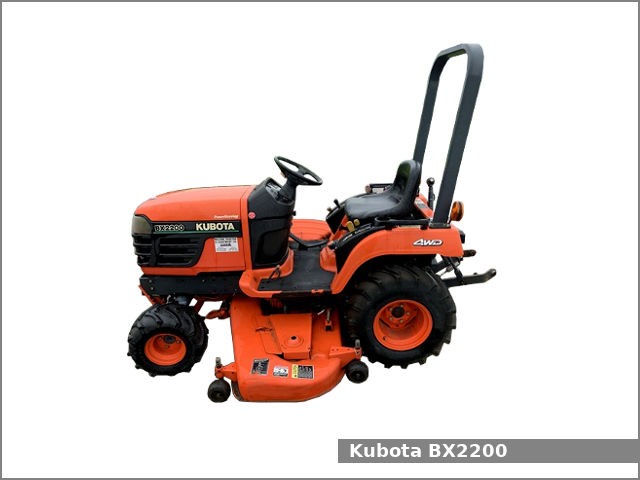

Kubota BX2200The Kubota BX2200 is a 4WD sub-compact utility tractor from the BX series. This tractor was manufactured by Kubota from 2001 to 2003. The Kubota BX2200 is equipped with 0.9 L three-cylinder diesel engine and hydrostatic transmission (2 forward and 2 reverse) gears.

The Kubota BX2200 sub-compact utility tractor used the Kubota D905-E-BX engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 22.3 PS (16.4 kW; 22.0 HP) of gross output power or 17 PS (12.5 KW; 16.8 HP) of PTO horsepower and 54.9 N·m (5.6 kg·m, 40.5 ft·lb) of torque. The engine has a spherical type combustion chamber; an indirect injection fuel system; forced lubrication by the trochoid pump; a forced circulation cooling system with a water pump.

The Kubota BX2200 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 21 liters (5.5 US gal.; 4.6 Imp. gal) fuel tank.

Following attachments are available for Kubota BX2200 sub-compact utility tractor:

  • Kubota RCK54 mid-mount 54 in (1,370) mm) mower deck with 3-blades
  • Kubota RCK60 mid-mount 60 in (1,520) mm) mower deck with 3-blades
  • Kubota TG2754 front-mount 54 in (1,370) mm) blade
  • Kubota BX2763 front-mount 60 in (1,520) mm) blade
  • Kubota BX2750A front-mount 50 in (1,270) mm) dual-stage snow blower with hydraulic lift
  • Kubota LA211 loader

Kubota BX2200 Specifications

General Specifications
Model Kubota BX2200
Length 2,025 mm (79.7 in)
Width 1,145 mm (45.1 in)
Height 1,800 mm (70.9 in)
Wheel base 1,400 mm (55.1 in)
Weight 590 kg (1,300 lbs)
Fuel tank capacity 21 liters (5.5 US gal.; 4.6 Imp. gal)
Battery 12V, CCA: 535A
Cabin type Open operator station with ROPS
Engine
Engine model Kubota D905-E-BX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 898 cm2, (54.8 cu·in)
Bore and stroke 72.0 mm X 73.6 mm (2.83 in X 2.9 in)
Compression ratio 23.0:1
Horsepower 22.3 PS (16.4 kW; 22 HP)
Torque 54.9 N·m (5.6 kg·m, 40.5 ft·lb)
Starter Electric
Oil capacity: 2.5 L (2.64 US. qt, 2.2 Imp. qt.)
Coolant capacity: 3.5 L (3.7 US. qt, 3.08 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic type
Brakes Wet disk type
Transmission model
Transmission type Hydrostatic
Gears Range gear shift (2 forward and 2 reverse)
Speed Forward: 13.0 kmh (8.1 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 10.1 L (10.67 US. qt, 8.89 Imp. qt.)
Front axle case 4.7 L (4.97 US. qt, 4.14 Imp. qt.)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity 310 kg (684 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,500 rpm
Rear PTO type Independent with hydraulic clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type
Pump flow 5.5 gpm (20.8 lpm)
